Detailed Description

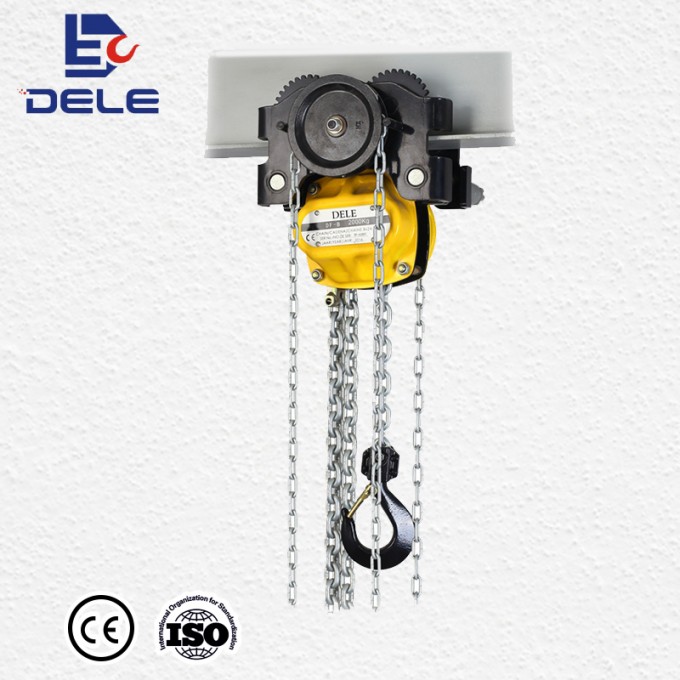

1.the chain hoist with plain trolley.made the hoist more safer for using.because the plain trolley steady the hoist,reduce the hoist slide.
2:this type capacity is better use in less than 3000kg,use single chain , lower the clearance size,good use in limited space.
3.trolley is easy to Installation and adjustment,also can check beam the width then installation and adjustment.
4trolley capacity under 5ton ,can choose two standard type ,one is beam max width 180mm ,also can easy to change max width 300mm .
|
| | | | | | |
| | | | | | |
| Model | HTP | HTP-005 | HTP-010 | HTP-020 | HTP-030 | HTP-050 |
| standard lift (mtr) | (mm) | 3 | 3 | 3 | 3 | 3 |
| no.of falls of laod chain | | 1 | 1 | 1 | 1 | 2 |
| hand chain working load | (N) | 220 | 240 | 305 | 360 | 370 |
| test road | (kg) | 750 | 1500 | 3000 | 4500 | 7500 |
| Load chain diameter×Number of falls | (mm) | 5*15 | 6*18 | 8*24 | 10*30 | 10*30 |
| Hang chain diameter×Number of falls | (mm) | 5*25 | 5*25 | 5*25 | 5*25 | 5*25 |
| load chain add 1m weight | (kg) | 13.5 | 22 | 42 | 56 | 82 |
| G.W | (kg) | 0.541 | 0.77 | 1.36 | 2.2 | 2.2 |
| MIX LIFT F | (mm) | 250 | 259 | 376 | 447 | 595 |
| BEAM WIDTH | (mm) | 50-180 | 74-203 | 85-203 | 100-203 | 114-203 |
MIX CURVE Radius
| (m) | 0.85 | 1 | 1.1 | 1.3 | 1.4 |
| Dimensions(mm) | a | 210 | 240 | 280 | 340 | 420 |
| b | 312 | 382 | 481 | 588 | 753 |
| c | 208 | 312 | 329 | 351 | 368 |
| d | 190 | 203 | 203 | 203 | 205 |
| e | 24 | 26 | 35 | 37 | 40 |
