Isuzu 2 10 20 Ton Refrigerated Freezer Foton Mini Refrigeration Small Refrigerator Van Box Truck for

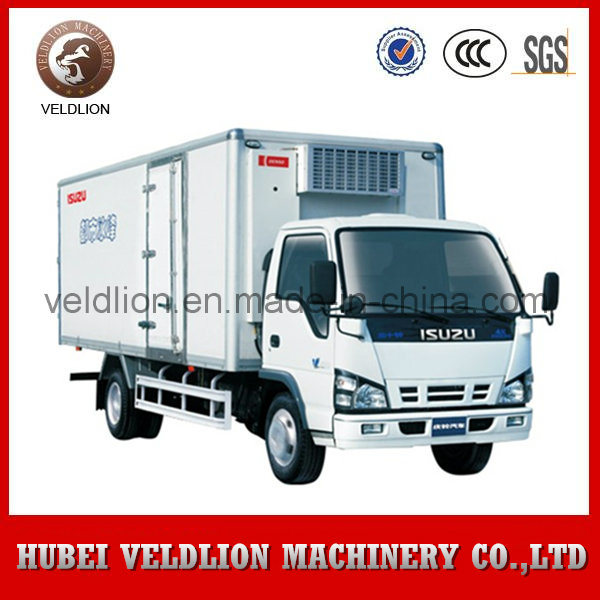

DETAILED VIEW OF TRUCK




SPECIFICATION

[Main specifications of ISUZU 4*2 6ton Refrigerator Truck]
Product model name	QL5070XLCA1KAJ Refrigerator Truck
Gross weight(Kg)	7300	Tank volume(m³)	17
Payload(Kg)	3400	Overall dimension(mm)	6980×2070×2990
Curb weight(Kg)	3770	Van body size (mm)	5050×1840×1800
Cab seats(person)	2	Drive type	4×2
Approach/departure angle(°)	24/14	Front/rear hang(mm)	1015/2150
Axle No.	2	Wheelbase(mm)	3815
Axle load (Kg)	2580/4720	Max speed (Km/h)	105
[Chassis specifications]
Chassis model	QL1070A1KA1Y	Manufacturer	Dongfeng Motor Co., Ltd
Brand name	Dongfeng	Tires No.	6
dimension(mm)	6645×1980×2200	Tire specification	7.00-16 14PR
Approach/departure angle(°)	24/14	Front track(mm)	1504
Steel spring number	8/6+5	Rear track(mm)	1525
Fuel type	Diesel	Emission standard	Euro3/Euro4
Engine model	Engine manufacturer	Displacement (ml)	power(kw)
4KH1-TCG40	ISUZU engine Co., LTD	2999	88
[Performance]
Van body size	5050×1840×1800	Truck body volume	17cbm
Lowest refrigeration temperature (°C)	-5 to -18 degree centigrade

COMPANY INFORMATION
Hubei veldlion machinery co., ltd ,which is appointed by the ministry of industry and information technology of china, is a big manufacturer producing all kinds of special trucks.It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation.What's more, it has roundly passed the certificaton of iso 9001-2008 and the 3c certification(china compulsory certification) and other certifications that export needed.

Our company can design and produce many kinds of special trucks accurately as your request.Also own independent export right, wit a mount of clients overseas, such as the u.N., sudan, nigeria, north america, west africa, congo, vietnam ghana, kazakhstan etc.We strives for the survival by the quality and credit standing is the guarantee of our success.

PACKAGING & SHIPPING

OUR MAIN PRODUCTS

OUR SERVICES(1) More than 500 workers, large and advanced production;
(2) 25 professional engineers, can offer the best and cheapest design;
(3) Build strict QC team to guarantee the quality;
(4) 1 year or 30,000km warranty which comes first.
(5) One set of spare parts of chassis provided which will help you save money on maintenance.
(6) Provide technical support and after serive for life.
(7) Professional sales team which will help you to choose suitable truck.

FAQWhy choose us?

Experience
10 years experience of production,sales,research and development in the field of special trucks.

Specialization
We can produce according to your demand, the material,the size, the color and the logo is optional for you.

Good quality
Has solid technology, advanced equipments;Reliant quality and flexible modes of operation also have strict quality control system and passed the iso9001-2008 and the 3c (china compulsory certification),with sgs,bv certifcate as well.

Chassis supply
We have a very good long term cooperation relationship with chassis manufacturer,such as dongfeng,foton,sinotruck,shacman,iveco,faw,hino,camc,north-benz,ect.

Production supply capacity
Company scale
More than 3000 employees with 1000 acres factory, total asset 2 billion.
We manufacture the truck as soon as possible once your order /confirm/ied.And for the stock, we can delivery it immediately.
