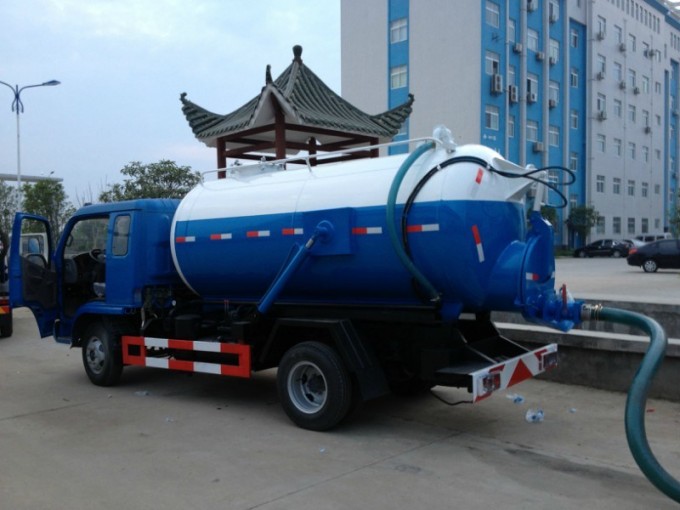

Dongfeng Chassis 5000L Sewage Truck 5m3

Dongfeng Chassis 5000L Sewage Truck 5m3


Truck Name:4x2 Vacuum Sewage Suction Truck
Rated loading: 4700 kg
Gross vehicle weight: 9400 kg
Curb Weight: 4505 kg
Overall Dimensions L*W*H: 6700x2320x2550 mm
Number of axes: 2
Wheel base: 3800 mm
Max speed: 95 km/h

Chassis: EQ1090T9ADJ3AC
Tire specification: 8.25-16bias tire (6 pcs)
Size: 6695x2285x2350 mm
Engine Type: Diesel CY4102-E3C
Power: 91KW
Emission Standard: EURO 3
Displacement: 3856 ml

Tank parameter
Tank capacity: 5000 L
Vacuum pump model: XD-30
Appropriate speed: 500-600r/m
Max vacuum: 5KPa
Effective suction range: ≥7-20m
Sucking time-consumming: ≤3minutes
Tank lifting time: ≤10s

General
Truck Name	Vacuum Sewage Suction Truck
Drive Type	4x2
Rated loading kg	4700
Gross vehicle weight(kg)	9400
Curb Weight (kg)	4505
Overall Dimensions L*W*H(mm)	6700x2320X2550
Number of axes	2
Wheel base(mm)	3800
Max speed (km/h)	95
Engine
Engine Brand	Dongfeng Chaoyang Diesel Engine Co., Ltd
Fuel Type	Diesel
Power	91KW
Emission Standard	EURO 3
Displacement(ml)	3856
Engine Type	6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis
Model	EQ1090T9ADJ3AC
Chassis Brand	DONGFENG
Tire no.	6
Tire specification	8.25-16bias tire
Size (mm)	6695x2285x2350
Approach/departure angle	22/13
Front track(mm)	1831
Rear track(mm)	1640
Special functions
Tank capacity(L)	5000
Vacuum pump model	XD-30
Appropriate speed	500-600r/m
Max vacuum	5KPa
Effective suction range	≥7-20m
Sucking time-consumming	≤3minutes
Tank lifting time	≤10s
Alarm mode: electronic alarm. Enough sludge vacuum; 2. Vacuum pump set two protection to pvent dirt infiltration pump body; 3. Vacuum pump driven by manual operation, convenient clutch; hydraulic oil pump and vacuum pump synchronized action, reliable work; 5. use hydraulic turning cans and open the door dumping; beautiful appearance, easy operation, good performance.
