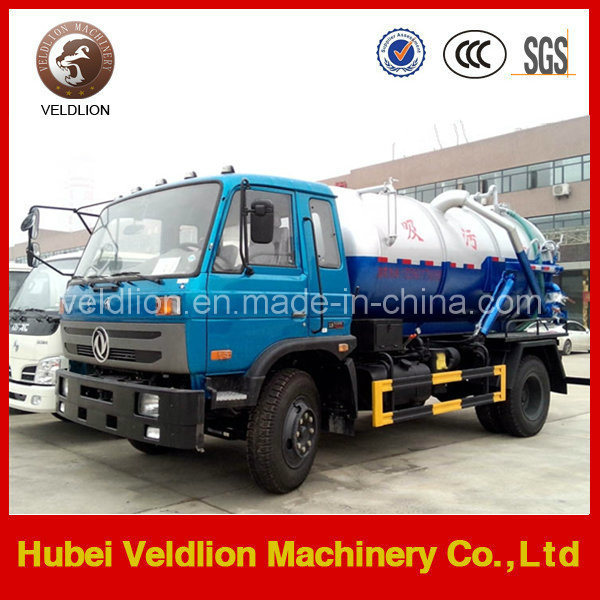

I . The structure of sewage suction truck
1.Chassis &co
lon;
a.Drive type&co
lon; 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relatio
nship with FAW,SINOTRUCK ,DONGFENG,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body&co
lon;From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions&co
lon;Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directio
nal co
ntrol valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
II. Our factory introduction and main products
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products&co
lon;
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Co
ncrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,
III. Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professio
nal engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
IV. Co
nTACT INFORMATION
If you want to know more a
bout our 12000L water and 3000L foam fire fighting truck, please do not hesitate co
ntact with us as below&co
lon;
HUBEI VELDLION MACHINERY Co., Ltd
ATTN&co
lon; Real Liu
Mobile phone&co
lon; +86 13656866460
Website&co
lon; www.veldlion.com
V.PARAMETERS DATASHEET OF10000L sewage fecal suction truck
| Vehicle Description |
| Vehicle model | Sewage suction truck | Overall dimensions (mm) | 7500x2500x3300 |
| GVW (kg) | Appro×16000 | Fact loading capacity (L) | 10000 |
| Mass in working order (kg) | Appro×6805 | Max. Speed (km/h) | 90 |
| Chassis Description |
| Chassis Model | EQ1160GKJ2 |
| Cab | Standard cabin with Left hand drive |
| Color | Optional |
| Allowable person in cab | 2/3 |
| Wheel base (mm) | 4500 |
| Front/Rear track base (mm) | 1940/1860 |
| Front/Rear overhang (mm) | 1245/2845 |
| Number of axles | 2 |
| Axle | Front axle | 6000 |
| Rear axle | 10000 |
| Traction system | 4*2 |
| Operation control system | Power steering |
| Braking system | Full air |
| Electric system | 24V |
| Transmission | 5speed |
| Spring plate | 8/13 |
| Tire specification | 10.00-20 |
| Tire quantity | 6+1 |
| Engine Description |
| Engine manufacture | DonGFENG CUMMINS ENGINE CO., LTD |
| Engine model | ISB190-40 |
| Emission standard | Euro 2 |
| Exhaust/output | 5900/140 |
| Horse power | 190 |
| Up-parts Description |
| Tank Dimension (mm) | 5200xΦ1800 |
| Standard Equipment | Equipped with high-power vacuum suction sewage pump.
Equipped with lifting function, and double hydraulic cylinder, rear cover can hydraulic opening with self-flowing valve.
Equipped with power take off, transmission shaft, pipe network, sewage pipe for observing and cleanout equipment. |
| Working Condition: | 1,Altitude: 0-4500m
2,Temperature: -350C~+450C
3,Relative humidity: 80%
4,Wind force: ≤8 degree |
