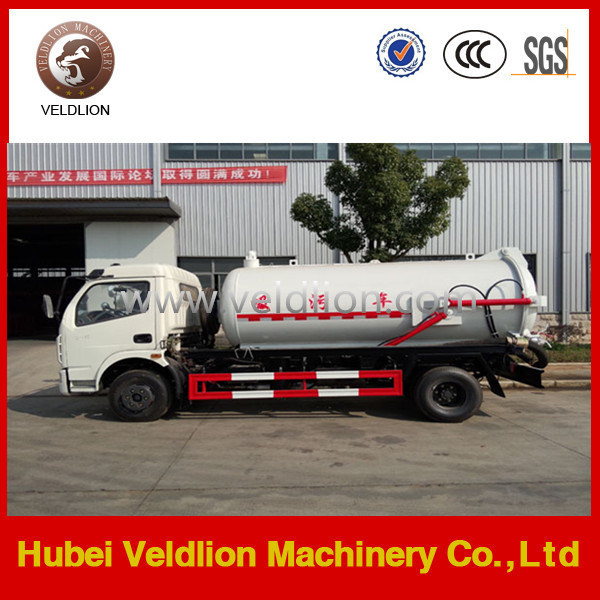

Dongfeng 4000L Vacuum Sewage Suction Truck (Euro 2/3/4)

Part 1: The structure of sewage suction truck
1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relationship with FAW,SINOTRUCK ,DonGFENG ,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.



Part 2 : Dongfeng 4000L vacuum sewage suction truck

Product	DongFeng 4X2 4000L Vacuum Fecal suction truck
Cab	Single row,Left/right hand drive with AC
Chassis	Brand	Dongfeng
	Chassis model	DFA1070SJ41D6
	Drive type	4x2
	Tire Spec.	7.00-16 14PR,7.00R16 14PR
	Tire Numbers	6
	Braking System	Air braking
	Transmission	Manual
Engine	Model	ZD30D13-4N
	Horse Power(hp)	130
	Displacement(cc)/ Power(kw)	2953/96
	Emission	EuroIII/EuroIV
Main Parameters	Overall dimension (L*W*H/mm)	5940x1980X2650
	Wheelbase(mm)	3350
	Axles No.	2
	GVW(kg)	7320
	Curb Weight(kg)	3825
	Leaf spring No.	6/5+5
	Front/Rear track(mm)	1598/1458
	Front/Rear suspension(mm)	1053/1537
	Max speed(km/h)	105
	Front/Rear Axle Load(kg)	2930/4390
Modified Description	1. Tank Material: carbon steel, stainless steel;
	2. Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
	3. With pssure meter, liquid indicator and hand washing device.
Application	This truck is used for collect and transport large and small water content material like crude oil liquid substances,sewage sludge, silt, stones etc .

Part 3: Our factory introduction and main products
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,

Part 4: Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.

Part 5: Contact us
Atten: Lotus Wong
Tel: 0086-135 5436 0907
www.veldlion.com
