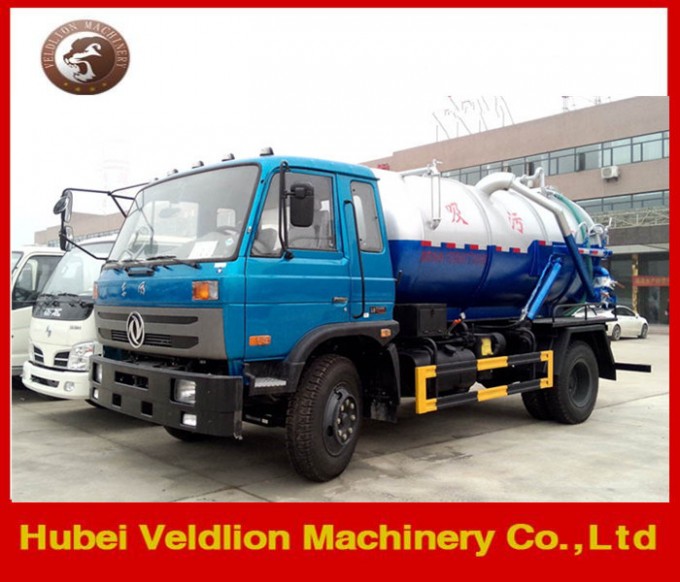

Hot Sale in Africa Dongfeng 10m3 Sewage Suction Truck

Part 1: The structure of sewage suction truck
1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relationship with FAW,SINOTRUCK ,DonGFENG ,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.

Part 2 : Dongfeng 12000L vacuum sewage suction truck

Product	DongFeng 4X2 12000L Fecal suction truck
Cab	Single sleeper row,Left/right hand drive with AC
Chassis	Brand	Dongfeng
	Chassis model	EQ1160ZZ4GJ
	Drive type	4x2
	Tire Spec.	9.00-20,9.00R20,10.00-20,10.00R20
	Tire Numbers	6
	Braking System	Air braking
	Clutch	Uniwafer, dryclutch, hydraulic remote control
	Transmission	Manual
Engine	Model	YC4E160-42
	Horse Power(hp)	160
	Displacement(cc)/ Power(kw)	4260/118
	Emission	EuroIII/EuroIV
Main Parameters	Overall dimension (L*W*H/mm)	7900x2480X2700
	Wheelbase(mm)	3800
	Axles No.	2
	GVW(kg)	16000
	Curb Weight(kg)	6305
	Leaf spring No.	9/11+8,9/12+9,9/10+8
	Approaching/Departure Angle(°)	28/23
	Front/Rear track(mm)	1900/1800
	Front/Rear suspension(mm)	1205/2195
	Max speed(km/h)	90
	Front/Rear Axle Load(kg)	6000/10000
Modified Description	1. Volume:3-18m³,round tanker,made by 5-6mm special plate.
	2. Equipped with high-power vacuum suction sewage pump.single pump/double pump(out and in) .
	3. Tanker with lifting founction,with double hydraulic cylinder,rear cover can hydraulic open,with self-flowing valve
Vacuum Pump Paramenters	Model	50QZXDG-45/400
	The Theory Pumping Speed L/S	45
	Rotation Speed (r/mm)	500
	Absolute Pressure of work (Vacuum)	400Pa(99.6%)
Composition	Basic composition:chassis,suction tanker, vacuum pump,PTO,pipes,valve and double hydraulic cylinder.
Purpose	This truck is mainly used for urban water wells and the examination of the wells. Help sucking, loading and unloading the sediment in various kinds of channels in the sludge, sewage or petrochemical sewage pool.

Part 3: Our factory introduction and main products
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,

Part 4: Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
