10000L Vacuum Sewage Suction Truck (LHD/RHD)

Part 1: The structure of sewage suction truck
1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relationship with FAW,SINOTRUCK ,DonGFENG ,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directional control valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.


Part 2: Our main vacuum suction trucks series & view of workshop

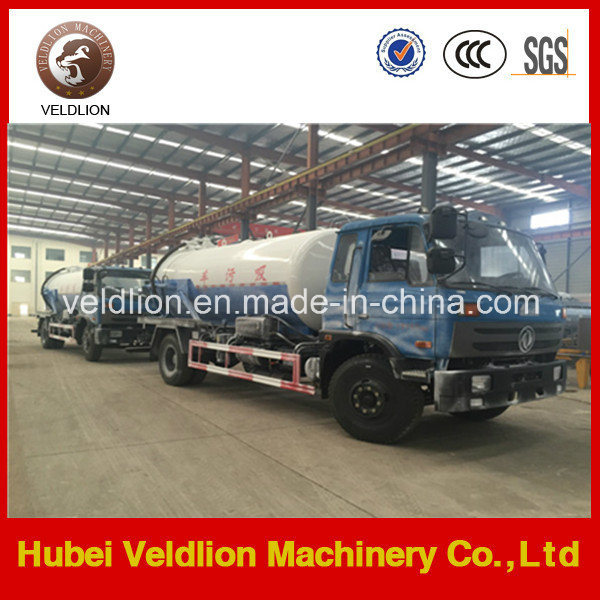

Part 3 : Dongfeng 10000L vacuum sewage suction truck

Items	Descriptions	Specifications and Types
General	Truck Name	Sewage suction truck
	Drive Type	4*2
	Gross Vehicle Weight(kg)	16000
	Curb Weight (kg)	6805
	Overall Dimensions L*W*H(mm)	7700×2470×3250
Engine	Engine Model	B170 33
	Engine Brand	Cummins
	Fuel Type	Diesel
	Power	125kw/170HP
	Emission Standard	Euro III
	Displacement(ml)	5900
	Engine Type	6 cylinders in line,water cooling, turbo-charged diesel engine,inter-cooling
Chassis	Chassis Brand	Dongfeng
	Front/Rear Axle Load(KG)	5995/10000
	Tire No.	6
	Tire Specification	10.00-20
	Wheelbase (mm)	4500
	Axle No.	2
	Gear Box	6 speed forward with 1 reverse, manual
	Steering Wheel	Left hand drive with power-assisted
	Brake	Air brake
	Radiator	Suitable for tropical climate
Sucking System	Tank Volume(L)	10000
	Tank shape	Cylindrical
	Tank Material	5mm thick carbon steel
	Suction Depth(m)	More than 6 meter
	Tank Tipping angle(°)	More than 45
	Rear door	Open and closed by hydraulic cylinders

Part 4: Our factory introduction and main products
HUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,

Part 5: Our service
(1) More than 300 workers ,large and advanced production;
(2) Have professional engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
