Detailed Description
2. Crane parameters.(Truck-mounted crane with telescopic boom)
| Model | Unit | SQ5SK2Q |
| Max Lifting Capacity | kg | 5000 |
| Max Lifting Moment | T.M | 12.5 |
| Recommend Powe | kw | 18 |
| Max Oil Flow of Hydraulic System | L/min | 32 |
| Max Pressure of Hydraulic System | MPa | 18 |
| Oil Tank Capacit | L | 100 |
| Rotation Angle | | All Rotation |
| Crane Weight | kg | 2074/2170 |
| Installation Space | mm | 1000 |
| SQ2SK1Q Lifting capability diagram |
| Working radius (m) | 2.5 | 3.62 | 6.05 | 8.5 |
| Lifting capacity (kg) | 5000 | 2800 | 1500 | 1100 |
| SQ2SK2Q Lifting capability diagram |
| Working radius (m) | 2.5 | 3.62 | 6.05 | 8.5 | 11 |
| Lifting capacity (kg) | 5000 | 2800 | 1500 | 1100 | 400 |

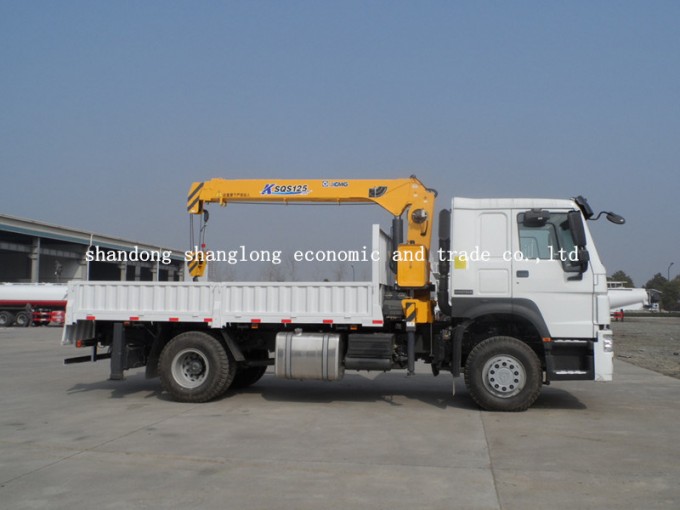

3. Pictures oftelescopic boom
4. Pictures offoldable arm
Truck-mounted crane with foldable arm andfoldable arm
3.2ton, 6.3ton, 4ton, 5ton, 8ton, 10ton, 12ton, 14ton, 16ton
