Part 1: The structure of sewage suction truck1.Chassis :
a.Drive type: 4x2,4x4,6x2,6x4,6x6,8x4 etc.
b.Our factory has good business relatio
nship with FAW,SINOTRUCK ,Do
nGFENG ,SHACMAN,JAC.JMC,FOTON,ISUZU,etc.
2.Tanker body:From 2m3 to 25 m3 capacity
3.Accessory of sewage suction factions:Equipped with PTO, transmission shaft, vacuum suction sewage pump, high pssure molding tank, moisture separator, gas-oil separation, multiple directio
nal co
ntrol valve, hanger rod, self-discharging valve, suck fecal gun and pipe network system.
Part 2: Our main vacuum suction trucks series & view of workshop

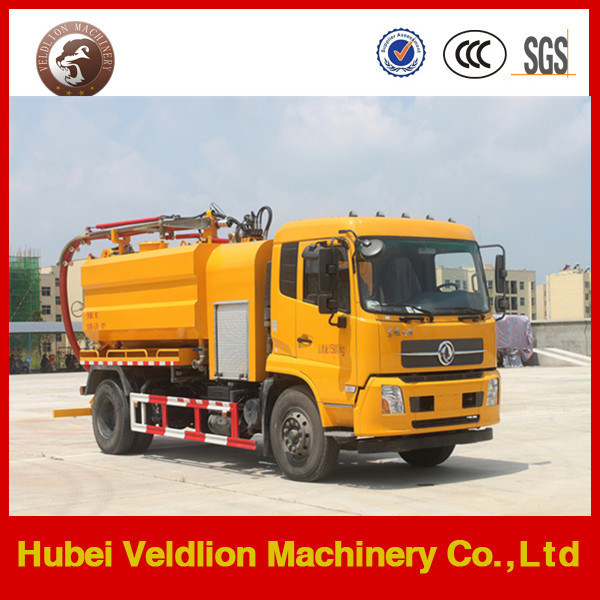

Part 3 : Technical date of Dongfeng sewage jetting truck 1. Technical data of the Do
ngfeng truck chassis
| The parameters of chassis |
| Chassis Model | DFL1250 | Driving type | 6*4 left hand drive |
| Gross weight (kg) | 25,000 | Wheel base | 4350+1300 |
| Front Tread (mm) | 1,986 | Rear Tread (mm) | 1860 |
| Front suspension(mm) | 1,460 | Rear suspension (mm) | 2340 |
| Tyre | 10.00-20 | Tyre number | 10+1(one spare tyre) |
| Spring number | 8/9 | Max speed (km/h) | 90 |
| The parameters of Engine |
| Engine | Manufacturer : | Dongfeng cummins |
| Rated Power | 245HP |
| Engine type | six-cylinder, turbocharged and intercooled |
| Fuel type | Diesel |
| Emission standard | Euro 4 |
2. Technical data of the tank
| Tank volume and material |
| Sewage tank volume | litres | 12,000 |
| Sewage tank material | / | Carbon steel Q235-A |
| Sewage tank thickness | mm | 5 |
| Water tank volume | litres | 4,000 |
| Water tank material | mm | 304 stainless steel |
| Water tank thickness | mm | 3 |
| Jetting water pump |
| model | / | SLR212/200(Italy brand high pssure plunger pump ) |
| Max flux | L/min | 200 |
| Working pssure | Mpa | 20 |
| Jetting high pssure pipe | / | 70 meters ¢19 , hydraulic operation |
| Pipe Retractable wring tension | KN | ≥10 |
| Pipe winding speed | m/min | 0-25 |
| Jetting spraying nozzles | / | 10 pcs carbon steel spraying nozzles |
| Pipe reel rotation | / | 180° |
| Pipe reel rotation | / | Rear of tank |
| Vacuum pump |
| Model | / | PN84D (Italy brand) |
| Flux | L/min | 9000 |
| Max vacuum degree | / | 92% |
| Max pssure | bar | 1.5 |
| Max power | KW | 11.2 |
| Max sewage suction depth | m | ≥7.8 |
| Other configuration |
| Sewage tank lifting | / | Hydraulic lifting dumping |
| Tank slope angle | ° | ≥5 |
| Sewage pipe | mm | 102 |
| Pumping time | min | 5-7 |
| Boom length | mm | 1000 |
| Boom rotation angle | ° | 270 |
| Boom lifting angle | ° | 0-20 |
| Hydraulic pssure | Mpa | 16 |
| Control way | / | Manual and electronic control |
| Hydraulic motor | / | Chinese brand |
| Multi valve manufacturer | / | Chinese brand |
| Hydraulic pump | / | Chinese brand |
| Hydraulic cylinder | / | Chinese brand |
Part 4: Our factory introduction and main productsHUBEI VELDLION MACHINERY CO., Ltd is an authorized forklift manufacturer.We are specialized in the production of avariety of special-purpose vehicles.
Creating value for our customers is our company's concept. Welcome to enquiry from us, Let's our sales team make you more great in this field.
Our main products:
1. LPG tank &truck %trailer
2. Fire engine truck
3. Truck mounted with crane
4. Heavy duty truck, dump truck
5. Water truck,
6. Fuel tanker,
7. Van truck, insulated truck, refrigeration truck
8. Fecal suction truck, sewage suction truck,
9. Concrete mixer truck,
10. High-altitude operation truck,
11. Self-loading garbage truck, garbage compactor truck, sealed garbage truck,
12. Bulk cement truck,Part 5: Our service(1) More than 300 workers ,large and advanced production;
(2) Have professio
nal engineer,can offer the best solutions;
(3) With keeping good relation with Sinotruk, FOTON, ISUZU, DFAC, FOTON, SHACMAN chassis factory.
(4) Build strict QC team to guarantee the quality;
(5) Own good sales team, can offer warm follow-up service.
