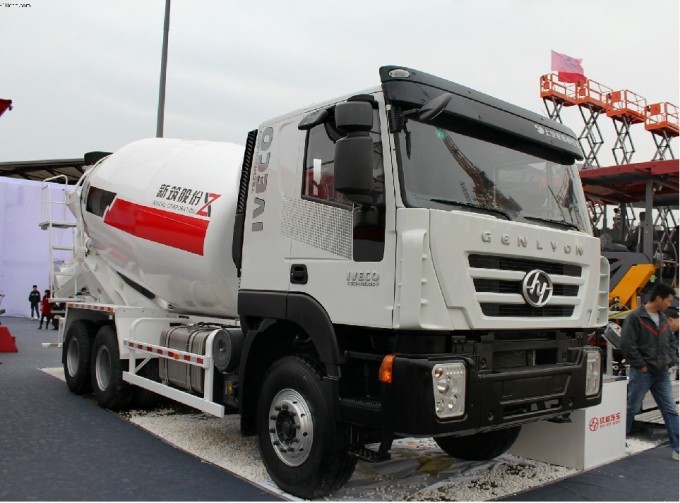

Iveco 6X4 Concrete Mixer Truck

IVECO Concrete Mixer Truck 8-10CBM Mixer truck

Quick Details

1.Capacity Volume:8-10CBM
2.Horse Power:335HP
3. GVW.:25000kg
4.Overall Dimensions:8875X2500x3950mm


Features of this mixer truck
1. Suit to transport cement through narrow street road, country road.
2. Fitted with Yuchai brand engine, meet Euro 3emission standard, have a good climb slope ability.

PACKAGING & SHIPPING

1, Naked or waxed .
2, Delivery time: 30 days after receiving payment in advance.
3. By RORO or Bulk ship.


Service
The extremely considerate and sincerely service would be provided to our customers immediately . This including:
1.Operator Training;
2.Spare Parts Supply.
3.Life-long Technical-support.

FAQ


Q:What is your payment term?
A:We accept payment by T/T,L/C.

Q :How many trucks do you sell in 1 year?
A :Almost 20000-30000sets

Q:Is your factory a manufacturer or trading company?
A:we are the manufacturer , we are the biggest special trucks factory in china special truck base.

Q:Where is your factory located,can we visit your factory?
A: Our factory is located in South Suburb Chengli Auto-mobile Industry Park,suizhou city,Hubei Province,China,nearby Wuhan airport,we sincerely welcome you to visit!


Contact Information

Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
+008618858011948

Technique Parameters

Description	IVECO 6X4 Concrete Mixer Truck
Drive Model	6X4
Chassis	BJ1143
Vehicle Main Dimensions	Dimensions(L x W x H)mm		8875X2500x3950
	Wheel base (mm)		3800+1400
	Overhang (front/rear) (mm)		1435/2265
	Wheel track (front/rear) (mm)		2006/1850
	Approach/Departure angle(°)		23/14
Weight in KGS	GVW.		25000
	Curb Weight		12980
Max. driving speed(km/h)			80
Engine	Model		FIAT C9-340
	Type		4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)		335HP
	Emission standard		Euro III
Gearbox	9 forwards & 1 reverse
Clutch	Reinforced diaphragm clutch
Steering Gear	Power steering, hydraulic steering with power assistance
Fuel tank (L)	280
Tire	12.00R20, 10 pieces+1 spare tire
Brakes	dual circuit compssed air brake
Mixer Drum
Capacity		8-10CBM
Material		16MnQ345
Tilt		11°-13°
Feedingspeed		1 m³/min
Dischargingspeed		0.8 m³/min
Material Remaining Ratio		≤0.6%
Drivingsystem
Speedreducer		Ky67-3-E(Germany brand)
Hydraulicpump		63gearpump(Italy brand)
Hydraulicmotor		Gerotormotor(Italy brand)
Heatdevice		24Vair-cooled
Oil hydraulic circuit		Closed circuit
Watersupplysystem
Tankvolume		62 L
WatersupplyPatterns		Airpssure
Control System
Manipulartion		Flexible shaft control

Drum Technique data
Drum Transmission Capacity	3000 L	4000 L	5000 L	6000 L	7000 L	8000 L	9000 L
Drum Capacity	4700 L	6000 L	8000 L	9770 L	10447 L	13400 L	14900 L
Charge Ratio	0.67	0.67	0.64	0.63	0.67	0.615	0.6
Charging Speed	≥3M3/ min	≥3M3/ min	≥3M3/ min	≥3M3/ min	≥3M3/ min	≥3M3/ min	≥3M3/ min
Discharge Speed	≥2M3/ min	≥2M3/ min	≥2M3/ min	≥2M3/ min	≥2M3/ min	≥2M3/ min	≥2M3/ min
Discharge Residual Rate	≤0.8 %	≤0.8 %	≤0.8 %	≤0.8 %	≤0.8 %	≤0.8 %	≤0.8 %
Drum Rotation Speed	0~16 r/min	0~16 r/min	0~16 r/min	0~16 r/min	0~16 r/min	0~16 r/min	0~16 r/min
Filling Height	1.92 M	2.2 M	2.3 M	2.4 M	2.5 M	2.55 M	2.6 M
Discharging Minimum Height	0.87 M	1.13 M	1.1 M	1.13 M	1.15 M	1.2 M	1.2 M
Axes Angel	14±0.5	14±0.5	14±0.5	14±0.5	14±0.5	14±0.5	12±0.5
Overall Dimension	3.9*1.8*2	4*1.95*2.2	4.8*2.3*2.15	5.2*2.1*2.4	4.4*2.1*2.47	5.2*2.2*2.6	5.4*2.3*2.65
Oil Tank Capacity	180 L	180 L	220 L	260 L	280 L	280 L	300 L
Normal Working Temperature	50~70ºC	50~70ºC	50ºC~70ºC	50ºC~70ºC	50ºC~70ºC	50ºC~70ºC	50ºC~70ºC

Company Information

Chengli Special Automobile Co, ltd which is appointed by Ministry of Industry and Information Technology of China,We are a Professionalmanufacturerand exporter which is concerned with the design, development and production of more than300kinds of trucks.
Our company cooperates with famous chassis manufactureer, such asDONGFENG, FAW,SINOTRUK, JAC, SHACMAN, FOTonand etc.
Chengli take customer's satisfaction as the top requirement. All of the trucks and semi-trailer sell toAfrica, South-east Aisa, Australia, Middle-eastand other place.They mainly from below country:Angola,Algeria,Kenya,Nigeria,Rwanda,Sudan,Zambia,Libya,Congo, Indonesia, Malaysia, Philippines,Vietnam,Turkey,Yemen,Syria.


ChengliSpecialautomobileCo.,Ltdalsoprovideproductsasfollows:

1.LPGTankTruckTrailer/FuelTankerTruck
2.Watertruck/WaterTankTruck/WaterSprinklerTruck/WaterTanker
3.Truckwithcrane/Truckmountedcrane
4.DumpTruck/TipperTruck/SideTipper/EndTipper
5.FireFightingTruck/FireTruck/FireVehicle
6.ConcreteMixerTruck
7.Vantruck/Blastingequipmenttransporter/Refrigeratedtruck
8.Fecalsuctiontruck/Sewagesuctiontruck,
9.CementPowderTanktruck/Bulkcementtruck
10.High-altitudeoperationtruck,
11.Self-loadinggarbagetruck,garbagecompactortruck,sealedgarbagetruc
12.Tractor
13.HighPressureCleaningTruck
14.SweeperTruck
15.SemiTrailer(flatbedtrailer/skeletontrailer/dumpsemitrailer/sidewalltrailer/lowbedtrailer/vancontainertrailer/warehousetrailer,etc.)

Contact Information

Sale Manager:Yuki
Tel/Fax: 0086-27-83796298
Mobile :+008613872880232
+008618858011948

FOTON small Concrete Mixer Truck 5CBM Mixer truck

Welcom to visit our factory!
