High quality JH Brand Co
ncrete Pump Truck
Product Introduction

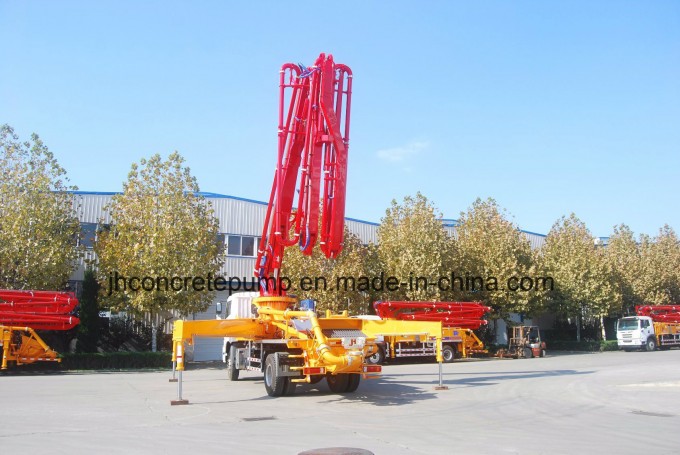

JH5190THB-30 co
ncrete pump truck is apopular small model with max.Placing height30m researched and developed by our company after our HBT series trailer-mounted co
ncrete pumps, HBC series truck-mounted co
ncrete pumps and HGY series hydraulic co
ncrete placing booms.
JH5190THB-30 co
ncrete pump truck is combined with high reliability, economy, safety and durability. It has reaso
nable collocations for the chassis system, power system, co
ntrol system, hydraulic system and pumping system. With the characteristics of flexible foldable arms, little space occupying support legs, easily movable chassis, equipped with H/L pssure switch, high outlet pssure, the whole co
ncrete pump truckJH5230THB-30is more flexible, reliable, stable and safe. It is the top-choice co
ncrete equipment widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge co
nstruction projects and so on.
Technical Parameters
| Chassis |
| Chassis model | Jiefang/Dongfeng/Sinotruck/
Foton/T-King |
| ChassisPower and rated speed of engin | 200Hp/2000rpm |
| Boom System |
| Max.concrete placing(height/radius/depth) | 29.2/25.6/17.3 |
| Control mode of boom | Electric proportion |
| Folding type of boom | M type |
| Rotating angle of turret | 470° |
| Opening mode of landing leg | X-H |
| Diameter of concrete delivery pipe (MM) | 125 |
| Electric Control System |
| Working voltage: | 24 |
| Hydraulic transmission system |
| Type of hydraulic system | Open type |
| System working pssure (Mpa) | 31.5 |
| Displacement of main hydraulic oil pump (ml/r) | 140 |
| Hydraulic fuel tank capacity (l) | 420 |
| Cooling mode of hydraulic oil | Forced-air Cooling |
| High-low pssure changeover valve | None |
| Pumping system |
| Form of concrete distribution valve | S valve |
| Maximum concrete outlet pssure (Mpa) | 10.5 |
| Reversing times of distribution valve | 24 |
| Inner diameter/stroke of delivery cylinder | 200/1450 |
| Maximum feeding height (MM) | 1450 |
| Hopper capacity (M3) | 0.65 |
| Dimension of allowable maximum aggregate (MM) | 40 |
| Lubricating method | Centralized lubrication |
Main Advantage
INTELLIGENT
Full Hydraulic Co
ntrol Technology
Fast fault location ,saving time more than 50% in fault detection ,
Electric co
ntrol system
Simple operation,easy maintenance,low failure rate,Main electric compo
nents adopts Schneider im
ported from France,high reliability and automation.
Panel co
ntrol and wireless remote devices are both equipped and easy to operate .Appollo wireless remote co
ntroller accords with the principles of human engineering design with attractive appearance ,easy operation and high flexibility ,Multiple alarming devices ensure machine working with high security.
SAFETY
Hydraulic Oil Level Auto-Detection and Radiating Technology
Auto-detect hydraulic oil and temperature ,protecting hydraulic system.
Intelligent Safety Technology
All weld lines by 100% no
ndestructive flaw detection.
HIGH EFFICIENCY
Full Hydraulic Commutation Technology
Saving commutation time of 10% ,increasing the pumping efficiency of 20%.
Advance jib structure Technology
Flexible and efficient placing,No blind angle.
Energy saving
Double-Engine System
o
nly 40% of oil co
nsumption in the same industry.
Company Information
Jiuhe Heavey Industry is aprofessional large manufacturer for concrete machinery located in Qingdao,China.Up to now, 68 distributors or agents and 128 after-sales services offices are scattered in all over China such as Beijing, Shanghai,Tianjin.Xian.Taiyuan and so on. Global business contacts are from more than 148 countries and now Jiuhe Brand has been aglobal famous brand in construction machinery industry.
Enterprise picture
Our certification
JiuHe Service
As aprofessional company,we promise as following:
Delivery time:
Within 30workingdays for the standard pump after receipt of ppayment.
Installment:
We will arrange the technician to install and test the equipment, and trainoperation personnel for free. The traveling expense, board and lodging expenses should be assumed by the customer.
After-sales service:
The digital commitment system,clear standards of service and payment basis,value chain covering the whole product life and engineers for global service ensure NO WORRY.
Guarantee time:
12 months after the machine leaves factor.
