Heavy Duty Storage Metal Drive Pallet Racking

Structure:

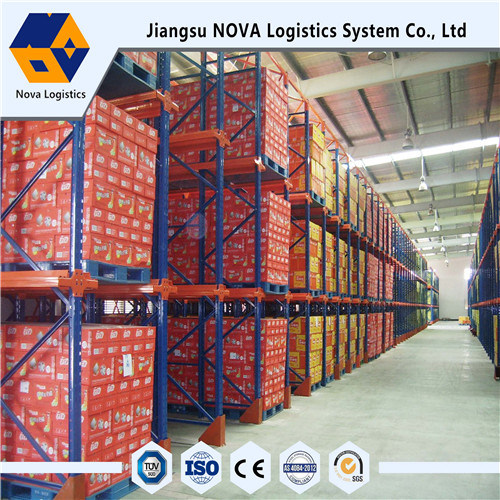

Drive in pallet racking:

1) Designed for storing few varieties and large quantities of similar goods with very high space utilization
2) Goods are stored and removed from the same side, or done from the opposite side in accordance with the first-in first-out principle
3) Specially suitable for standard goods units
Specification:
Upright:
NH2A TYPE(Upright 90A), NH2B TYPE(Upright 90B), NH4 TYPE(upright 120)
The non-standard ones can also be customized by clients.

frame	Height (2-13m)	Depth (600-1,400mm)
	Upright section: 80x60; 90 X70; 100 X65; 120 X87mm
	Thickness: 2.0/2.3/2.5/3.0mm
Beam	Length (1200-4000mm) ,popular size: 2300,2500,2700,3200,3600mm
	Beam section: 80 X50; 100 X50;110x50; 120 X50; 140 X50mm
	Thickness: 1.4--1.5mm
Load capacity	1-4Tons/Layer
Others	Pitch: 75mm,76.2mm - Delivery time: 14-20days - Payment term. T/T or L/C at sight - Necessary accessories: free(bolts &nuts, base plate, etc) - Packing: stretch film &carton -Surface treatment: powder coated, galvanization - Production capacity: 3000T/month - Main market: exported more than 40countries, such as AU, pH, SG, UK, India and etc. - Available in various colors/specifications/sizes

We are professional manufacturer of all types of Racking system since 1997, supply you with quality products at competitive prices. We would like to be your reliable supplier and trusted friends.
