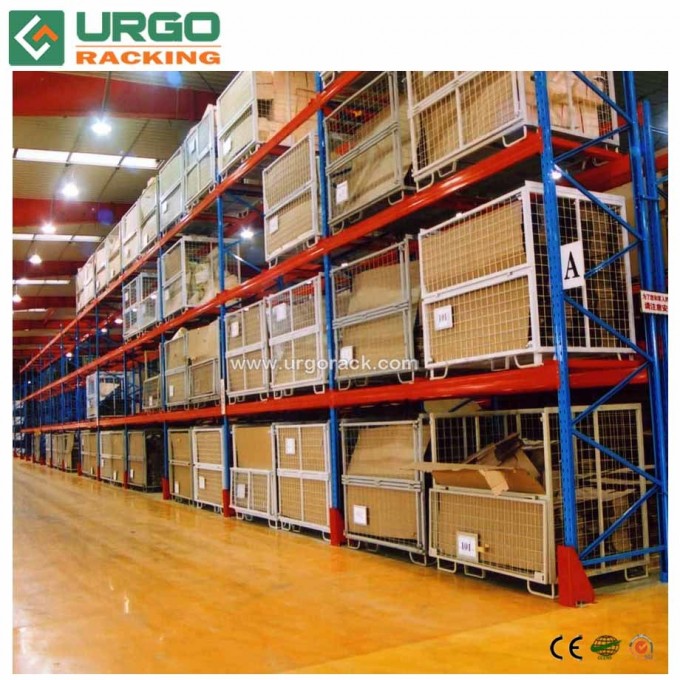

1.100% accessibility to individual pallets;
2. Easy picking lower levels;
3. Good storage density;
4. Easily installed and repositioned;
5. No special lift trucks required;
ColumnProfiles:
Column Specification (mm) | Thickness (mm) | Upright Loading (kg) |
W80 x D60 | 1.8-2.0 | 4000-6000 KG |
W85 x D67 | 1.8-2.3 | 7500-12500 KG |
W90 x D60 | 1.8-2.5 | 8000-10000 KG |
W90 x D70 | 1.8-2.5 | 10000-12000 KG |
W100 x D70 | 2.0-2.5 | 11000-14000 KG |
W120 x D95 | 2.3-3.0 | 17000-21000KG |
Beam Profiles:
Loading (kg) Specification (mm) | The Length of Box Beam (mm) | ||||||||
1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
80 x 50 x 1.5 | 3000 | 1740 | 1340 | 1160 | 1010 | ||||
90 x 50 x 1.5 | 4080 | 2350 | 1800 | 1645 | 1345 | 1010 | 850 | ||
100 x 50 1.5 | 2960 | 2260 | 1930 | 1680 | 1380 | 1040 | |||
110 x 50 x 1.5 | 2640 | 2250 | 1950 | 1600 | 1340 | 1140 | |||
120 x 50 x 1.5 | 3200 | 2730 | 2358 | 1930 | 1518 | 1379 | |||
140 x 50 x 1.5 | 3868 | 3330 | 2720 | 2370 | 2020 | ||||
160 x 50 x 1.5 | 4220 | 3690 | 2970 | 2600 | 2340 | ||||
160 x 50 x 1.8 | 4400 | 3420 | 3020 | 2590 | |||||
160 x 50 x 2.0 | 4130 | 4170 | 3320 | 2840 |
Loading (kg) Specification (mm) | The Length of P Box Beam (mm) | ||||||||
1500 | 2000 | 2300 | 2500 | 2700 | 3000 | 3300 | 3600 | 3900 | |
100 x 50 x 1.5 | 4470 | 2512 | 1900 | 1610 | 1380 | 1120 | 920 | ||
110 x 50 x 1.5 | 5484 | 3085 | 2332 | 1974 | 1693 | 1371 | 1133 | 952 | |
120 x 50 x 1.5 | 3910 | 2957 | 2503 | 2146 | 1738 | 1436 | 1207 | 1030 | |
140 x 50 x 1.5 | 5722 | 4330 | 3662 | 3140 | 2543 | 2102 | 1766 | 1505 |
FrequentQuestionAnswer
1. Q:Whatmakesyoudifferentwithother suppliers?
A: 1)Our excellent service Foraquick,nohasslequotejustsendemailtous.Wepromisetoreplywithapricewithin12hours
2)Ourquickmanufacturingtime
For selective pallet racking orders, we will promise to produce within 15 days. As a manufactory we can essure the delivery time according to the formal contract.
3)Our special export designWepayverymuchattentiontotheexportpackages.Wehaveplasticclipsonthebeamstoprotectthebeams
fromsurfacedamageinthetransportation,Wehavegotthewhole uprightswrapped withtransparent plastic film.
4)Our warranty time
The high standardsinthe designand manufacturingensureustosupporttheproductswitha10 years warranty timeforyournormaluse, itisthe longest manufacturer's warranty!
2. Q:MayIknowthestatusofmyorder?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
3. Q:Aresamplesavailable?
A: Yes,wecansendsomesectionsofsamplesforyourreferencebyexpss.
4. Q: Is Galvanised Finish available for pallet racks?
A:Yes. Pallet raking posts and bracings are available with galvanized finish.
5. Q: How can I get your quick quotation on my pallet racking project?
A:As different clients and projects have different needs of racking dimensions and specification, as general, for quick quotation, we need to know the following information:
1) Required Pallet Racking Dimension:Height*Depth*Length?
2) Number of Levels?
3) Loading Capacity of each level?
4) Racking Quantity?
