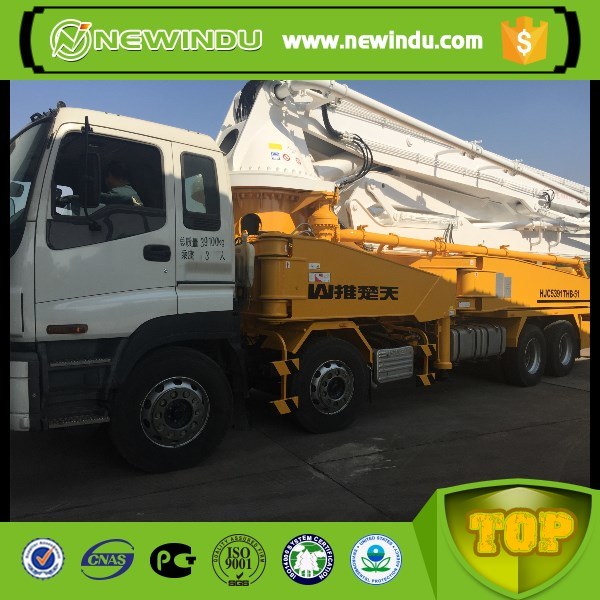

Shantui 51m Concrete Boom Pump Truck

Shantui 51m Boom Pump Truck

Chassis model:Germany/ Japan brand

Number of axles: 4

Boom height:49m

Performance Parameters

Model			Unit	HJC5420THB-51	HJC5421THB-51
Vehicle specification	Length × width × height		mm	13810×2500×4000	13850x2500X4000
	Gross weight of machine		Kg	43000	42400
Boom parameters	Folding type			5-section RZ-shaped
	Rotation angle for boom sections		°	90/180/80/250/180
	Vertical height of boom		m	49/50.8
	Horizontal length of boom		m	45/46.8
	Vertical height of boom		m	34/36
	Minimum unfolding height of boom		m	10.3
	Rotation angle of turntable			±360°
Outrigger parameters	Extending/retracting mode of outriggers			X-shaped outriggers
	Maximum extending span of front outriggers		m	9.51
	Maximum extending span of rear outriggers		m	12.8
Pumping system parameters	Theoretical concrete displacement	High pssure	m3/h	120
		Low pssure	m3/h	170
	Theoretical pumping pssure	High pssure	Mpa	12
		Low pssure	Mpa	8.3
	Bore diameter of delivery cylinder		mm	260
	Travel of delivery cylinder		mm	2200
	Hopper capacity		L	800
	System oil pssure		Mpa	32
Other	Remote controller			German HBC
	Cooling mode of hydraulic oil			Air cooling
Chassis	Chassis model			ACTROS4141/8×4	CYH52Y
	Engine power			300kw/1800rpm	294kw/1800rpm
	Emission standard			EURO IV

Model			Unit	HJC5391THB-51	HJC5410THB-51
Vehicle specification	Length × width × height		mm	13950×2500×4000	13850x2500X4000
	Gross weight of machine		Kg	39000	42000
Boom parameters	Folding type			5-section RZ-shaped
	Rotation angle for boom sections		°	90/180/80/250/180
	Vertical height of boom		m	49/50.8
	Horizontal length of boom		m	45/46.8
	Vertical height of boom		m	34/36
	Minimum unfolding height of boom		m	10.3
	Rotation angle of turntable			±365°	±360°
Outrigger parameters	Extending/retracting mode of outriggers			Backward-swing type	X-shaped outriggers
	Maximum extending span of front outriggers		m	10.7	9.51
	Maximum extending span of rear outriggers		m	11.2	12.8
Pumping system parameters	Theoretical concrete displacement	High pssure	m3/h		120
		Low pssure	m3/h	120	170
	Theoretical pumping pssure	High pssure	Mpa		12
		Low pssure	Mpa	7	8.3
	Bore diameter of delivery cylinder		mm	230	260
	Travel of delivery cylinder		mm	2000	2200
	Hopper capacity		L	600	800
	System oil pssure		Mpa	32
Other	Remote controller			German
	Cooling mode of hydraulic oil			Air cooling
Chassis	Chassis model			CYH51Y
	Engine power			287kw/1800rpm
	Emission standard			Euro-III

We, Newindu company which is a professional construction machinery company with over 10 years exporting experience.Our business range is very large as below:1.Hosting equipment (truck cranes, crawler crane, towe crane, truck mounted crane, etc.)2.Earthmoving equipment ( excavator, wheel loader, bulldozer, etc.)3.Road equipment (road roller, motor grader, asphalt paver, cold milling machine, etc.)
4. Logistic equipment ( forklift, reach stacker, container handler, pallet stacker, etc.)5. Special trucks (dump truck, tractor truck, water tank truck, semi-trailer, crago truck, etc.)6.concrete equipment( concrete mixer, concrete pump truck, concrete/asphalt mixing plant, etc.)7.Drilling equipment(rotary drilling rig, horizontial direction drill rig, etc)8.Agricultural machine( tractor, harvester, etc)9.Spare parts all available
We will be happy to receive your inquiry for any machine you need. By using professional foreign trade experience, we will recommend exatcly you need with good quality and competitive price.
