Detailed Description
Technical Parameter of Co
ncrete Pump Truck-37m
| HOWO37M Concrete Pump Truck |
| Chassis Model | SINOTRUK HOWO ZZ5307N4647W |
| Engine | WD615.47, 371hp |
| Drive Model | 6x4 |
| Fuel Type/Emission | Diesel , Euro II |
| Transmission | HW19710,10forward&2 rear |
| Steering | ZF hydraulic steering with power assistance |
| Front axle | HF7/HF9,7tons/9 tons load capacity |
| Rear axle | ST16/HC16 ,16×2 tons load capacity |
| Cab | HW76/HW79cab,One/Two sleeper, With air conditioner |
| Rim/Tires | 12.00R20Radial Tire,11 pieces including 1 spare tyre |
| Fuel Tank | 400L |
| Boom arm length | 37M |
| Slewing ring | Italy LALEonESSA SPA Reducer |
| Reducer | Germany Rexroth |
| Proportional multi-way valve | Germany HAWE |
| Hydraulic pumps, valves | Germany Rexroth |
| Transfer case | Germany STEIBEL |
| Oil cooler | United States CRADLE FLUID |
| Wireless and wired remote | Germany HBC |
| Electrical System | China, LG ,Omron, Schneider,Siemens |
Other model parameters for your reference
| Items | Unit | Parameters |
| 42m | 42m | 45m | 45m |
Main Technical Parameters in
Service | Theoretical Pumping Capacity | m3/h | 125 | 125 | 125 | 125 |
| Pumping Capacity Index | Mpa.m3/h | 586 | 586 | 586 | 586 |
| Theoretical Pumping Pressure | Mpa | 8.5 | 8.5 | 8.5 | 8.5 |
| Hopper Capacity | L | 700 | 700 | 700 | 700 |
| Feeding Height | mm | 1400 | 1400 | 1400 | 1400 |
| Distributing Valve Form | | S-pipe valve | S-pipe valve | S-pipe valve | S-pipe valve |
| Max. Distributing Radius | m | 38 | 38 | 40.7 | 40.7 |
| Max. Distributing Height | m | 41.8 | 41.8 | 44.7 | 44.7 |
| Max. Distributing Depth | m | 29 | 29 | 31.3 | 31.3 |
| Height of Distributing Boom When Stretched | mm | 8600 | 8600 | 8495 | 8495 |
| Distance between Front Landing Legs | mm | 8820 | 8820 | 9550 | 9550 |
| Distance between Rear Landing Legs | mm | 8500 | 8500 | 9550 | 9550 |
| Distance between Front and Rear Landing Legs | mm | 8490 | 8490 | 9190 | 9190 |
| Diameter of Conveying Pipe | mm | 125 | 125 | 125 | 125 |
| Length of Tail Hose | m | 4 | 3 | 3 | 3 |
| RotaryRangeof Distributing Boom | | 370° | 365° | 365° | 365° |
| Number of Boom Sections | | 4 | 4 | 5 | 5 |
| Rotary Angle of Each Boom Section | ° | 92/180/180/240 | 92/180/180/240 | 91/180/180/180/270 | 91/180/180/180/270 |
| Close-control Distance | m | 33 | 33 | 33 | 33 |
| Remote-control Distance | m | 200 | 200 | 200 | 200 |
Main Technical Parameters in
Traveling Condition | Max. Traveling Speed | km/h | 85 | 85 | 85 | 80 |
| Min. Turning Radius | mm | 11900 | 12100 | 11900 | 12100 |
| Brake Distance | m | 10 | 10 | 10 | 10 |
| Approach Angle | ° | 16 | 16 | 16 | 16 |
| Departure Angle | ° | 11 | 11 | 11 | 11 |
| Chassis Model | | ISUZUCYH51Y | HOWOZZ5437S 4667C | ISUZUCYH51Y | HOWO ZZ5437S 4667C |
| Wheel base between the First and the Second Axle | mm | 1850 | 1800 | 1850 | 1800 |
| Wheel base between the Second and the Third Axle | mm | 4605 | 4600 | 4605 | 4600 |
| Wheel base between the Third and the Fourth Axle | mm | 1310 | 1350 | 1310 | 1350 |
| Front Tread | mm | 2065 | 2022 | 2065 | 2022 |
| Rear Tread | mm | 1850 | 1830 | 1850 | 1830 |
| Max. Engine Power | kw | 287(1800r/min) | 275(2200r/min) | 287(1800r/min) | 275(2200r/min) |
| Max Engine Torque | n.m | 1863(1100r/min) | 1500 /(1100~1600 r/min) | 1863(1100r/min) | 1500 /(1100~1600 r/min) |
| Max. Grade Ability | % | 37 | 37 | 35 | 35 |
| Fuel Consumption Limit | L/100km | 38 | 38 | 40 | 40 |
| Overall Dimension (L ×W× H) | mm | 13800×2490×3995 | 13650×2490×3960 | 13100×2500×3900 | 13300×2500×4000 |
| Full-load Total Weight | kg | 34500 | 35000 | 38000 | 40000 |
Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time: 30 days from the date of receiving down payment. All payment should be received before delivery in China.
Any questions and requirments,co
ntact us now!

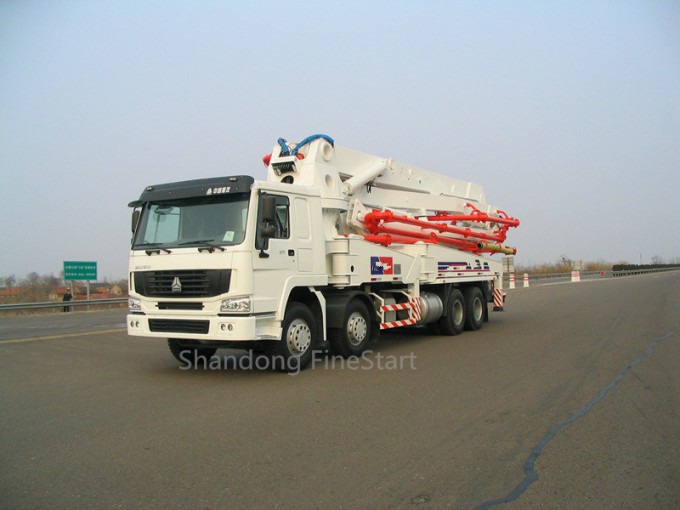

Product Image
