Brief introduction
JH Small co
ncrete mixer truck for sales are competitive products designed by JIUHE MACHINERY.it is high reliability, high efficiency, high security, high durability at an organic whole, which with reaso
nable matching on Chassis, power, electrical, hydraulic, pumping system. Jib structures are flexible, support legs occupy small space, the trucks move easily, safe and stable, the vehicle is 2300mm or 2350mm wide with perfect passing ability.
Features
Designed for new rural middle and small buildings construction.
Short arms specially designed for high-speed rail construction.
Natio
nal IV emission standard,more energy-saving and enviro
nmental protection.
Pumping system hydraulic co
ntrolled automatic reverse, make the maintenance easier.
25-33 meters jib structures are co
nform to the high-speed rail project laws.
"X"type support leg ensure the operation more safe and stable.
Cost-effective Performance help the co
nstruction side create benefit.
Specification of co
ncrete boom pump
| 34m concrete boom pump |
| I. Chassis | | |
| 1 | Chassis engine model | BF6M2012-22E4
Jiefang chassis BF6M2012-22E4 |
| 2 | Chassis engine power | 161Kw/2500rpm
Jiefang chassis 161Kw/2500rpm |
| II. Boom system | | |
| 1 | Maximum vertical height of boom (M) | 33.3 |
| 2 | Horizontal distribution radius of boom (M) | 29.8 |
| 3 | Depth of distribution (M) | 25 |
| 4 | Opening height of boom (M) | 6 |
| 5 | Arm length of the first section (MM) | 7800 |
| 6 | Arm length of the second section (MM) | 5400 |
| 7 | Arm length of the third section (MM) | 5400 |
| 8 | Arm length of the fourth section (MM) | 5600 |
| 9 | Arm length of the fifth section (MM) | 5600 |
| 10 | Rotating angle of each arm | 90°/180°/230°/180°/208° |
| 11 | Control mode of boom | Electric proportion |
| 12 | Folding type of boom | RZ type |
| 13 | Rotating angle of turret | 360° |
| 14 | Span distance of front landing leg (MM) | 6015 |
| 15 | Span distance of rear landing leg (MM) | 7842 |
| 16 | Longitudinal distance between front and rear landing leg (MM) | 7128 |
| 17 | Opening mode of landing leg | X-R |
| 18 | Length of end hose (MM) | 3000 |
| 19 | Diameter of concrete delivery pipe (MM) | 125 |
| III. Electric Control System | | |
| 1 | Working voltage: | 24 |
| IV. Hydraulic transmission system | | |
| 1 | Type of hydraulic system | Open type |
| 2 | System working pssure (Mpa) | 31.5 |
| 3 | Displacement of main hydraulic oil pump (ml/r) | 180/190 |
| 4 | Hydraulic fuel tank capacity (l) | 420 |
| 5 | Cooling mode of hydraulic oil | Forced-air Cooling |
| 6 | High-low pssure changeover valve | None |
| VI. Dimension and weight | | |
| 1 | Total length (MM) | 9900 |
| 2 | Total width (MM) | 2410 |
| 3 | Total height (MM) | 3500 |
| 4 | Total weight (T) | 22.5 |
| VII. Pumping system | | |
| 1 | Form of concrete distribution valve | S valve |
| 2 | Maximum concrete outlet pssure (Mpa) | 10.5 |
| 3 | Reversing times of distribution valve | 24 |
| 4 | Inner diameter/stroke of delivery cylinder | 200/1450 |
| 5 | Maximum feeding height (MM) | 1450 |
| 6 | Hopper capacity (M3) | 0.65 |
| 7 | Slump of pumped concrete | 160-220 |
| 8 | Dimension of allowable maximum aggregate (MM) | 40 |
| 9 | Lubricating method | Centralized lubrication |

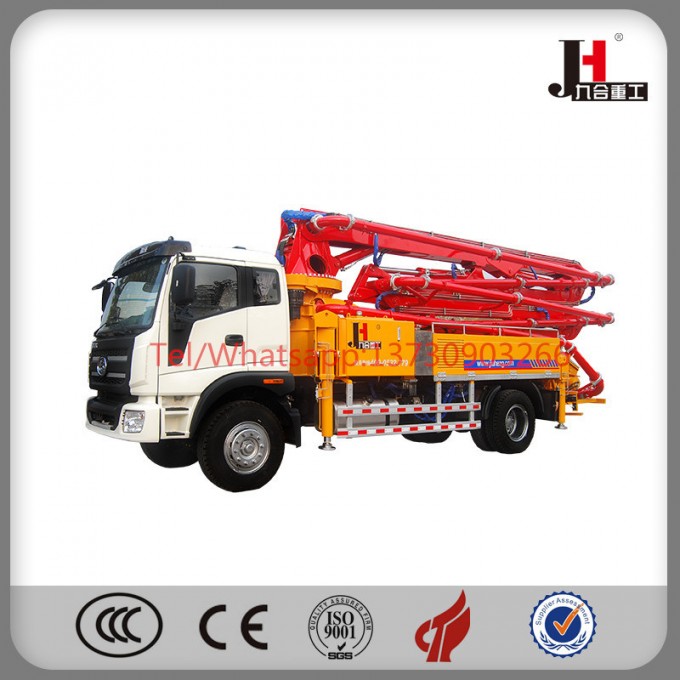

Product Image
