Well Designed Storage Pallet Racking for Warehouse Layouts

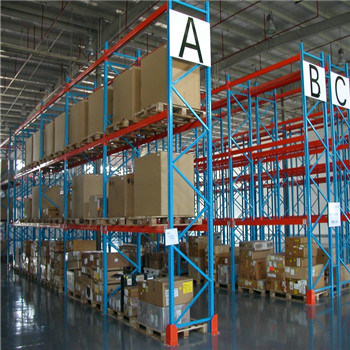

Heavy Duty Pallet Rack for Industrial Warehouse

Sin-Sino Pallet Rack is designed and manufacturered to AustralianStandard -Steel Storafe Racking AS4084-1993.

Pallet Rack is one of the most widely used pallet racking systems. Designed for strength, durability and ease of assembly, the system comprises a comphensive choice of frames and pallet support beams which are pcisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectively.

Features:
1. Standard and special dimensions are both available, you just put forward your requirement and we design, we give the solutions;
2. Pitch is with 75mm and 76.2mm(3''), compatible with European top brands like Dexion, Schaefer, etc.

Specification:

Specifications of Upright
Item	Height(mm)	Width(mm)	Thickness(mm)
1	55	55	1.5
2	55	55	1.8
3	55	50	1.5
4	55	50	1.8
5	55	54	1.5
6	55	54	1.8
7	75	63	1.5
8	75	63	1.8
9	75	63	2.0
10	75	68	1.5
11	75	68	1.8
12	75	68	2.0
13	80	60	1.8
14	80	60	2.0
15	90	67	1.5
16	90	67	1.8
17	90	67	2.0
18	100	67	1.5
19	100	67	1.8
20	100	67	2.0
21	100	95	2.0
22	100	95	2.3
23	100	95	2.5
24	120	100	2.5
25	120	100	2.75
26	120	100	3.0

Specifications of Beam
Style	Item	Height(mm)	Width(mm)	Thickness(mm)
P Style Step Beam	1	50	30	1.5
	2	60	40	1.5
	3	80	50	1.5
	4	110	50	2.5
RHS Beam	5	50	30	1.5
	6	60	40	1.5
	7	80	40	1.5
	8	80	40	2
Box Beam	9	80	45	1.5
	10	80	50	1.5
	11	90	45	1.5
	12	90	50	1.5
	13	100	45	1.5
	14	100	50	1.5
	15	110	45	1.5
	16	110	50	1.5
	17	120	45	1.5
	18	120	50	1.5
	19	140	45	1.5
	20	140	50	1.5
	21	160	45	1.5
	22	160	50	1.5

For quick quotation, it will be better if following info could be provided.
1. Required Pallet Racking Dimension: Height*Depth*Length?
2. Number of Levels?
3. Loading Capacity of each level?
4. Racking Quantity?(No mimimum limit for our proudction, but to keep the most economical shipping costs
as general, we suggest our clients order quantity fitting 20ft or 40ft containers.)
5. If you are not very sure of above info, please just let us know your storage needs. Accordingly, we'll be happy to provide with our professional proposed racking solutions for your kind reference.



AS4084 Certificate

about Sin-Sino:
SIN-SINO United was incorporated in Tai Cang, Jiangsu province PRC in 2011. SIN-SINO United State-of-the-art factory is located at Tai Cang New Industrial park, site area 63, 000 sq meter with a total investment of USD100 million
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions

SIN-SINO United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satisfy end user and distributor needs. Our continuous improvement programmes ensure that the most up-to-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their investment are protected and cost minimised.

Our Mission :
To strive for innovation and service leadership and exceed our customer expectations by being a learning organization that is self critical and is never satisfied with yesterdays Innovation and service. To develop better products and systems, whilst increasing quality and performance and reducing costs.

Sin-Sino United looks forward to being part of your success.
