Durable Storage Pallet Rack Under High Loading Capacity
Sin-Sino Storage Pallet Rackis designed and manufacturered to Australian Standard -Steel Storage RackingAS4084-2012.
Storage Pallet Rack is one of the most widely used pallet racking systems. Designed for strength, durability and ease of assembly, the system comprises acomphensive choice of frames and pallet support beams which are pcisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectively. Pallet Racking is the most widely used storage system which suitable for most of cargo and lots ofdifferent industries, such as electronic, telecommunication, computer, pharmacy, furniture, garment,super market.
Specifications of Upright & Beam:
| Material | High quality rolled steel |
| Surface treatment | Powder coating/Galvanizing |
| Color | Selective |
| Loading capacity | 1000-5000kgs |
| layers | 2-6,as your concrete requirement |
| Size of Upright (Height:5000-11800mm)Q235/345D |
| Specification | Width | Depth | Thickness | Unit-mm |
| SSN75*63 | 75 | 63 | 1.5/1.8/2.0 | mm |
| SSN75*68 | 75 | 68 | 1.5/1.8/2.0 | mm |
| SSN80*60 | 80 | 60 | 1.8/2.0 | mm |
| SSN90*67 | 90 | 67 | 1.8/2.0/2.3 | mm |
| SSN100*67 | 100 | 67 | 1.8/2.0/2.3 | mm |
| SSN100*9 | 100 | 95 | 2.0/2.3/2.5 | mm |
| SSN120*100 | 120 | 100 | 2.5/2.75/3.0 | mm |
| Size of Box Beam(Length:1000-4000)Q235/345D |
| Specification | Width | Depth | Thickness | Unit-mm |
| SSN-K80*45 | 80 | 45 | 1.5 | mm |
| SSN-K80*50 | 80 | 50 | 1.5 | mm |
| SSN-K90*45 | 90 | 45 | 1.5 | mm |
| SSN-K90*50 | 90 | 50 | 1.5 | mm |
| SSN-K100*45 | 100 | 45 | 1.5 | mm |
| SSN-K100*50 | 100 | 50 | 1.5 | mm |
| SSN-K110*45 | 110 | 45 | 1.5 | mm |
| SSN-K110*50 | 110 | 50 | 1.5 | mm |
| SSN-K120*45 | 120 | 45 | 1.5 | mm |
| SSN-K120*50 | 120 | 50 | 1.5 | mm |
| SSN-K140*45 | 140 | 45 | 1.5 | mm |
| SSN-K140*50 | 140 | 50 | 1.5 | mm |
| SSN-K160*45 | 160 | 45 | 1.5 | mm |
| SSN-K160*50 | 160 | 50 | 1.5 | mm |
Pallet Rack Features:
1.Offer customer 100% pallet selective right, customer can pick up any pallet they want. Beam can beadjustable by 75mm/50mm or 76.2mm(dexion style for empire size)
2.The size can be tooling according to warehouse situation, different loading available. Beam levelloading capacity can be up to 5000kg/level.

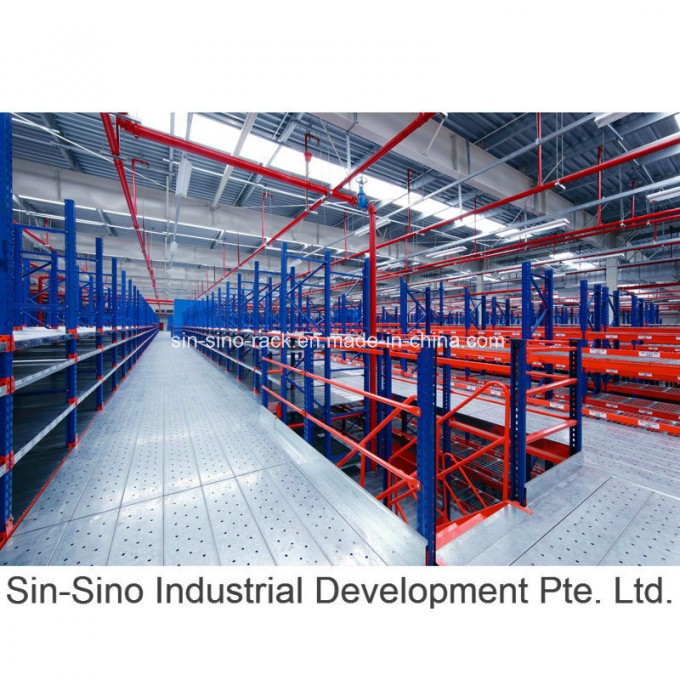

3.Height of single post can be 12 meter , the system is flexible and can be structure of other storagesystem like mezzanine floor, automatically racking system and mobile racking system. Pallet Rackingalso can be structure fame of steel warehouse.
4.Various of component and accessory and add into pallet racking system to meet customer specialrequirement, like wire decking, steel shelf, drum supportetc.5.The total investment cost is low, easy to install and relocation. It's suitable for different materialhandling equipment.
For quick quotation, it will be better if following info could be provided.
Drawing of racking(if available)Drawing of facility
Dimension of your warehouse(Length *Width * Height/mm)
Pallet Size(W*D*H)& loading weight
How manylayers and bays
We can offer CAD design service for customer for free charge and give customer technical support.
Free samplescan be supplied, within 2 weeks after freight received.
AS4084 Certificate &ISO9001
Factory View
Frequently Asked Question 1. What makes you different with others?
1) Our Excellent Service for aquick, no hassle quote just send email to us. We promise to reply with aprice within 24 hours -sometimes even within the hour. If you need an advice, just call our export office at 0086-512-53836950, we will answer your questions immediately.
2)Our quick manufacturing time for Normal orders, we will promise to produce within 15 days.As amanufactory, we can essure the delivery time according to the formal contract.
3)Our Special Export Design that We pay very much attention to the export packages. We haveplastic clipson the beams to protect the beams from surface damage in the transportation, We have got the whole uprights wrapped with transparentplastic film.
4) Our Warranty TimeThe High Standards in the Design and Manufacturing ensure us to support the products with a10-Year Warranty Timefor your normal use, it is the Longest Manufacturer's Warranty!
2. What is delivery times?
This depends on the product. Typically standard products are deliveredwithin 15 days. The delivery time of the special products is according to the time of setting up of the tooling.
3. What is the term of payment?
L/C
TT 30% depositafter order /confirm/ied,70% balance against Copy of B/LOr before shipment.
4. May Iknow the status of my order?
Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
5. Are samples available?
Yes, we can send some sections of samples for your reference by expss.
Pallet Racking Structure
1.Upright frame consists of 2 single post, horizontal bracing & diagonal bracing and bolts & nuts toconnect them. The structure could give system a stable support. There are 2 or 3 lines of holes on post ,the pitch is usually 75mm or 50mm, which make the beam height can be adjustable by 75mm or 50mmfreely. Post section have 11-13 face, which increase the loading capacity. Upright frame is made byrolling and forming machine.
2.Beam consists of one bar and two beam connectors, beam is made by 2 pieces of profile weldingtogether, which double the thickness of top & bottom side. This maximum the loading capacity under lowcost. Safety pins lock into beam to pvent beam from falling down.
Pallet Racking Accessories:
Column Guards
The Column Guard is bolted to the floor in the front of the uprights providing protection from forkits to the bottom portion of the upright.
Storage Accessories
A range of accessories are available to tailor pallet racking to specific needs and applications. Standard accessories include:
Pallet Support Bars
Supported at each end by the beams, Pallet support beams provide asecondary support member for pallet racking or shelving. The Pallet Support Bar is designed to have its top surface approximately flush with the beams.
Pallets
Mesh Decks
Clip on wire Mesh Decks minimize the build up of dust and increase light and visibility in warehouses.
Other Accessories
Floor Anchor Bolts
