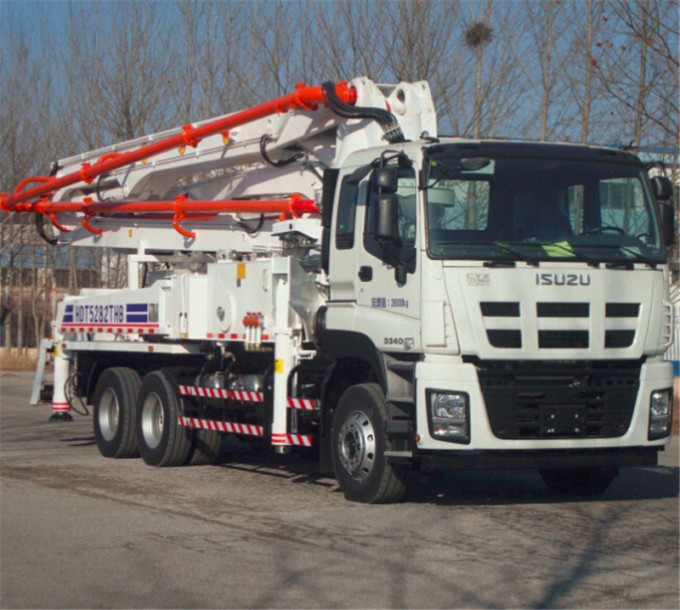

China Construction Vehicle Isuzu 37m Concrete Pump Truck

China Construction Vehicle ISUZU 37m Concrete Pump Truck

Main Spec.
Laiyang Hongda construction vehicle, kinds of concrete pump truck,made in Shandong, China.
Made by ISUZU or Sinotruk truck chassis, can make 37m to 60m concrete pump truck for you.

Technical parameter:

Model		37M	Chassis Model				ISUZU CYZ52Q
Cross Weight		28×103kg	Chassis Drive Model				6×4
Max. Running Speed		80km/h	Cab with air conditioner Sleeper
			Wheel base		1st axle-2nd axle			4565mm
Outline	Total Length	12200mm			2nd axle- 3rd axle			1370mm
	Total Width	2490mm	Tread		Front Wheel			2065mm
	Total Height	3850mm			Back Wheel			1850mm/1850mm
Engine	Engine	L-6 Six Cylinder In-Line	Tyre Size					295/80R22.58
			in. turning radius					8.9m
	Model	6WG1G	braking distance					≤10m/30km/h
	Output Power	294KW/1800rpm	Boom	Type				Four Section Hydraulic Pressure
	Max. Torque	1863N.m/1300rpm		Max. Terrian Clearance				36.6m
	Emission Standard	Euro iv		Conveying Pump Diameter				DN125
	Gear-box Model	WJT7S		Terminal Soft Pipe Length				4m
	Discharge Capacity	15681ml		The first section		Length		8760mm
Pump System	Drive Mode	Hydraulic				Turn Angle		1000
	Oil Cylinder Inner Diameter×Distance of Travel	φ115mm×2000mm		The Second Section		Length		7910mm
	Delivering Cylinder Inner Diameter×Distance of Travel	φ230mm×2000mm				Turn Angle		1800
	Valve Type	S valve		The Third Section		Length		7910mm
	Concrete Output Volume in Theory	125 m3/h				Turn Angle		1800
				The Fourth Section		Length		7960mm
	Pumping Pressure In Theory	8.5Mpa				Turn Angle		2400
				Boom Rotating Range				3700
	Pumping Times In Theory	26 times/min		Max Distribute Radius				32.6m
				Max. Distribute Height				36.6m
				Hydraulic System Pressure				32MPa
			Lubricating Method					Oil Self-lubricate
	Bucket Capacity	0.6m3	Oil Tank Capacity					600L
	Load Material Height	1.4m	Control					Manual operation/Remote Control
	System Oil Pressure	32MPa	Water PUMP Max. Water Pressure					4MPa
	Slump	14cm~23cm	Water Tank Capacity					700L
	Max. Aggregate Size	40mm	Hydraulic Oil Cooling Method					Air Cooling
	Pump power ratio displacement	stepless	Concrete Pipe Washing Way					Water Scrubbing/ Dry cleaning

Company information

1.QINGDAO SEIZE THE FUTURE AUTOMOBILE SALES CO. LTD is aheavy automobile business unit with the approval of State Administration for industry and Commerce and State Development Planning Commission.
2.The company mainly deals with Heavy Duty Truck (tractor truck, dump truck, cargo truck, concrete mixer truck, LNG truck, CNG truck), Light Truck (light cargo truck, light tipper truck), Special Vehicle (fuel tank truck, water tank truck, road wrecker, garbage truck, fecal suction truck, freeze truck, fire truck, terminal tractor, towing tractor), Construction Machinery (wheel loader, crane excavator, bulldozer, road roller, motor grader, forklift, Asphalt spader, concrete pump truck, asphalt batching plant, concrete batching plant) Semi-trailer( container semi-trailer, low-bed semi-trailer, tipper semi-trailer, cargo semi-trailer, tanker semi-trailer) and so on.
3.The company is an authorized dealer of SINOTRUK, SHAANQI, BEIBEN,Special Truck Company, CNHTC, CIMC Container Manufacture Co. Ltd., ZHonGTONG and other heavy automobile manufactures and refitting enterprises.
4.Brand of construction machinery includes LIUGONG, SHANTUI, CHENGGONG, HBXG, CHANGLIN, ZOOMLION, PENGPU, LUTONG, YTO, SANY and so on.

We are one of the best export companies in China. We supply all kinds of trucks and construction machinery. We are professional in doing this for more than 12 years! We have our own spare parts department to help deal with after sale issues.

Please be assured that we are able to provide you qualified products with good price and after sale service.
