HOWO 48M HOWO Concrete Pump Truck For Sale
The concrete pump truck can be divided into large concrete pump truck and small concrete pump truck according to the length of arm frame.
The concrete pump truck is modified on the chassis of the truck, which is fitted with a motion and power transmission, a pumping and stirring device, a cloth device and other auxiliary devices.
The driving force of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the dynamic split box, and the hydraulic pump pushes the piston to drive the concrete pump. Then the concrete is transported to a certain height and distance by using the cloth rod and conveying pipe on the pump.
In addition to driving the pump truck, the engine of the concrete pump is also used to drive the pumping mechanism, the stirring mechanism and the cloth mechanism.
The power of each working device of the concrete pump truck originates from the automobile engine.
When the concrete pump truck works, the power of the automobile engine passes through the gearbox to the compartment, then passes through the transfer box to each hydraulic pump or the chassis rear axle.
When the driver issued a switch to the pump position of the instructions, pneumatic solenoid valve control on the transfer box on the cylinder to promote the fork, fork and then push the separation gear to switch to the pump position, while cutting the power to the rear axle, so that the car in the state of the vehicle. Conversely, switch to the driving position. Now the control of the pump is basically realized by the remote controller.

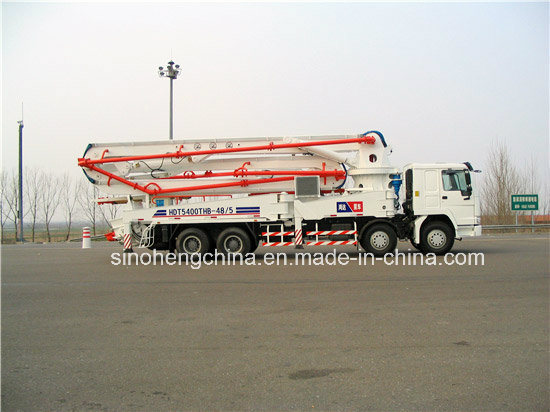

HOWO 48M Concrete Pump Truck
Chassis Model	SINOTRUK HOWO ZZ5437N5067W
Engine	WD615.47, 371hp
Drive Model	8x4
Fuel Type/Emission	Diesel , Euro II
Transmission	HW19710,10forward&2 rear
Steering	ZF hydraulic steering with power assistance
Front axle	HF7,7tons×2loadingcapacity
Rear axle	ST16,16×2 tons load capacity
Cab	HW76cab,One sleeper, With air conditioner
Rim/Tires	12.00R20Radial Tire,13pieces including 1 spare tyre
Fuel Tank	400L
Boom arm length	48M
Slewing ring	Italy LALEonESSA SPA Reducer
Reducer	Italy REGGIANA REDUTTORI
Proportional multi-way valve	Germany HAWE
Hydraulic pumps, valves	Germany Rexroth
Transfer case	Germany STEIBEL
Oil cooler	United States CRADLE FLUID
Wireless and wired remote	Germany HBC
Electrical System	China, LG ,Omron, Schneider,Siemens
