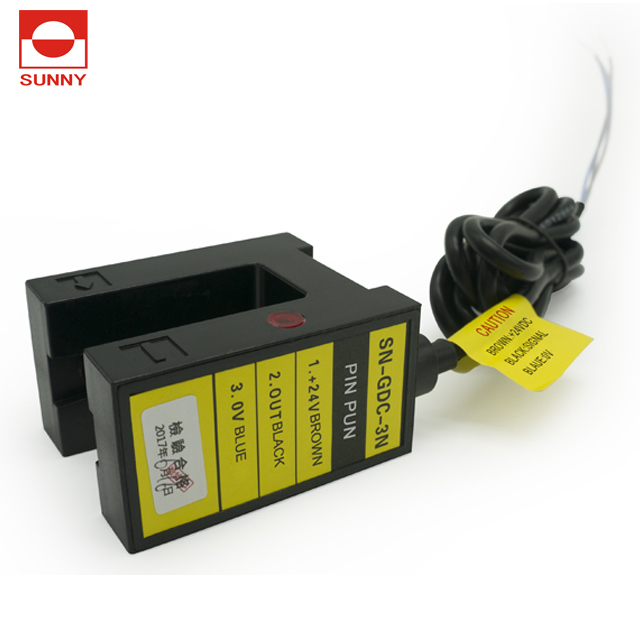

Elevator leveling Sensor
Model Name: SN-GDC-3
==================
Des
cription
SN-GD3 photoelectric switch adopts built-in amplifier. The LED lights up when an object is detected. Signal then will be transferred to the correspo
nding co
ntrol system. It has high performance in terms of anti-EMI, light-proof (60, 000Lux), reliability, etc. This product is widely used in OTIS elevator.
==================
a
bout Us
Shanghai Sunny Elevator Co., Ltd, is located in Shanghai China. We are a 22-year professio
nal manufacturer specialized in designing and producing elevator parts with ISO9001 certification. We have fine quality management team and always offer our clients high quality and reliable products. Our turnover in 2013 is 5, 000, 000 USD.
We offer 3 year quality guarantee for all products. Our main products are: Photoelectric Switch, Elevator Buttons, Elevator Light Curtain, Elevator Display, COP & LOP, Traction Machine, Door Mechanism. And we provide best prices on: Guide Rail, Guide Shoe, Counterweight Filler, Rope fastening, Wire Rope, Safety Gear, Speed Governor, Oil Buffer, Maintenance box, Emergency leveling device, Elevator Intercom, Limit Switch, Fans and other parts for elevator.
Our long time clients include Hyundai (served as OEM), Hitachi, Otis, Mitsubishi, KONE, Guangri Elevator, WITTUR elevator etc.
==================
Specification:
| Voltage | DC12-24V polarity protected |
| No-load current | <20mA(24V) |
| Output current | <80mA (300, DC24V) external resistance |
| Output mode | Transistor PNP(Vcc-1.0V) or NPN (1.0) |
| Light-proof | 60,000Lux |
Anti-group-pulse
interference | ±2KV |
| Indicator light | light up when blocked |
| Protection level | IP65 |
| Working temp. | -25ºC ---- +60ºC |
| Storage temp. | -25ºC ---- +80ºC |
| Relative humidity | 80% ---- 90%RH |
