Detailed Description
Elevator switch SN-KCB_R-IA elevator bistable switch/elevator leveling switch

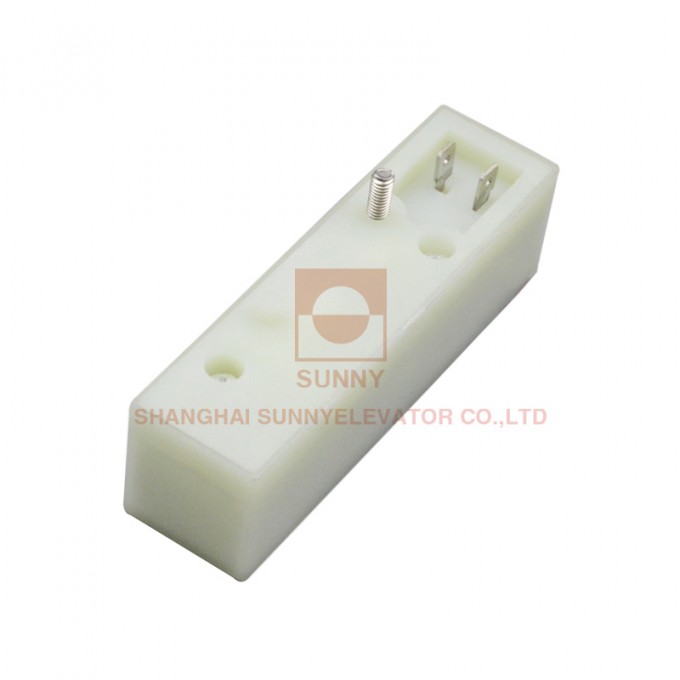

Product Shape
·SN-KCB_R-IA cable outlet in the left.
·Application in elevator car level for position sensing.
·Power:100~120W, voltage:250VAC/DC, current:3.0A;
·Shock-resistance:50G
·Testing distance:3mm~16mm;
·Elevator level bi-stable switch is with dustproof and explosion-proofplastic case,foreign-made reed switch with high life;Applied on elevator for car position
·Sensing,throw-over switch,limit switch and position measuring sensor.
Switch working features
·Switch action distance:3-16mm, Testing distance:3mm/10mm/16mm
·Switch operated between the distance of 3-16mm,and move in the range of ±5mm requesting to avoid interference of other switches.
·Switch is approaching to magnet under 4m/s, no negative conditions happen. Above requirements are necessary when switch is actuated by S-N magnet.
·Switch VKN≤4m/s,≥4m/s is customized.
| Technical Parameter |
| Switching capacity | Max | 120W/VA | Switching time without bounce | Max | 3.5ms |
| Switching voltage | Max | 250V AC/DC | Bounce time | Max | 0.5ms |
| Switching current | Max | 3 A | Release time | Max | 0.2ms |
| Carrying current | Max | 5 A | Resonant frequency | typ | 900Hz |
| Dielectric strength | Min | 800 VDC | Operating frequency | Max | 100Hz |
| Insulation resistance | Min | 10 11 Ohms | Shock 11ms | Max | 50g |
| Operating principle | Magnetic | Testing distance | mm | 4~16 |
