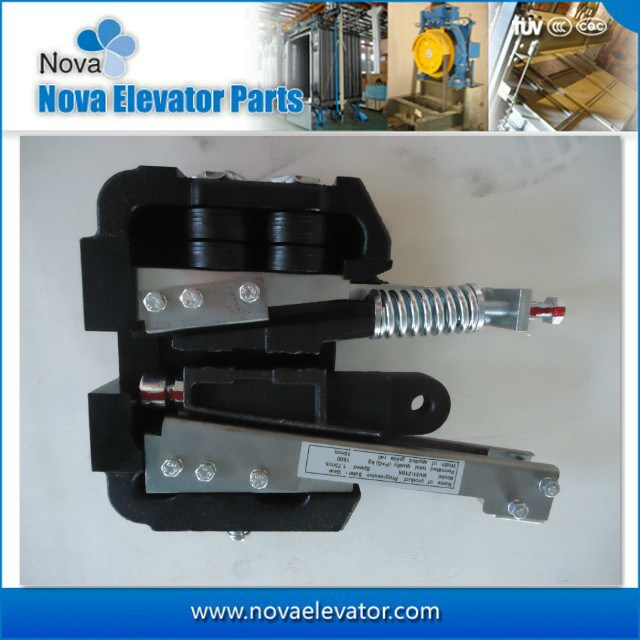

High Quality Elevator Safety Gear for Passenger Lift

The elevator safety gear is adevice under the control of speed governor, when the elevator over speed its rated speed or in the case of suspension rope breakage or slack, the car stop in emergency and clamp on the guide rail. It provides effective protection to the safe operation of the elevator and generally installed in the car frame or counterweight frame. Safety gear device is composed of two parts: operating mechanism(safety gear linkage mechanism) and braking mechanism(safety clamp).

Our company mainly provides safety gear which divided into the instantaneous type and progressive types. Instantaneous safety gear is applied to elevator less than 0.63m/s. Progressive safety gear for elevators with rated speed less than 2.5m/s. The company offers avariety of installation and specifications, applied in freight elevators and passenger elevators. Customers should choose to match the safety gear according with the structure of the elevator, maximum permit system quality, guide rail specifications, rated speed etc.

Type	Nova Code	Rated Speed(m/s)	P+Q(KGS)	With of guide rail(mm)	Installation Position
Progressive Safety Gear	NV51-188	<=2.5	809~5125	10,15.88,16	Cabin, Counterweight
	NV51-188A	<=2.5	1143~6292	10,15.88,16	Cabin, Counterweight
	NV51-188B	<=2.5	565~3240	10,15.88,16	Cabin, Counterweight
	NV51-210A	<=2.5	947~4122	9,10,15.88,16	Cabin, Counterweight
	NV51-210B	<=2.5	538~3480	10,15.88,16	Cabin, Counterweight
Instantaneous Safety Gear	NV51-288	<=0.63	<=8500	15.88,16	Cabin
	NV51-388	<=0.63	<=12500	15.88,16	Cabin
	NV51-088	<=0.63	<=1271(10mm) <=1627(16mm)	10,16	Cabin

If you are interested in our safety gear, welcome to contact us as below.
