Trumpf Painted Steel Freight Elevator with Big Capcity

Parameter

Load(kg)	Speed(m/s)	Car opening size	Door open type	Car net size	Shaft inside dimension	Machine roomsize	Remarks
		(DO×HH)mm		(CW×CD)mm	(SW×SD)mm PP OH	(W×D×H)mm
1000	0.5	1200×2100	Side-opening	1500×1600	2400×2100 1500 4500	2400×2100×2500	One-side opening
1000	0.5	1200×2100	Side-opening	1500×1600	2400×2100 1500 4500	2400×2100×2500	Opposite door
2000	0.5	1500×2100	Center opening double-folded	1900×2200	2900×2600 1500 4500	2900×2600×2500	One-side opening
2000	0.5	1500×2100	Center opening double-folded	1900×2200	2900×2700 1500 4500	2900×2700×2500	Opposite door
2000	0.5	1500×2100		1900×2200	2800×2600 1500 4500	2800×2600×2500	One-side opening
2000	0.5	1500×2100		1900×2200	2800×2700 1500 4500	2800×2700×2500	Opposite door
3000	0.5	1600×2100	Center opening double-folded	2000×2800	3200×3300 1600 4500	3200×3300×2500	One-side opening
3000	0.5	1600×2100	Center opening double-folded	2000×2800	3200×3300 1600 4500	3200×3300×2500	Opposite door
3000	0.5	1600×2100		2000×2800	3000×3300 1600 4500	3000×3300×2500	One-side opening
3000	0.5	1600×2100		2000×2800	3000×3300 1600 4500	3000×3300×2500	Opposite door
5000	0.5	1600×2100	Center opening double-folded	2500×3500	4200×4000 1700 4800	3200×3300×2800	One-side opening
5000	0.5	1600×2100	Center opening double-folded	2500×3500	4200×4000 1700 4800	3200×3300×2800	Opposite door

TRUMPF freight elevator applies fully computerized modular elevator special-purpose control system, effective
and reliable drive mode, soft and sensitive VVVF variable frequency door machine. It can easily, flexibly,
competently bear any heavy load under various conditions. High strength car structure, anti-collision strip,
setting of light curtain door can satisfy various goods transport uses. It is applicable for different building
structures. It creates brand-new goods transport ideas.

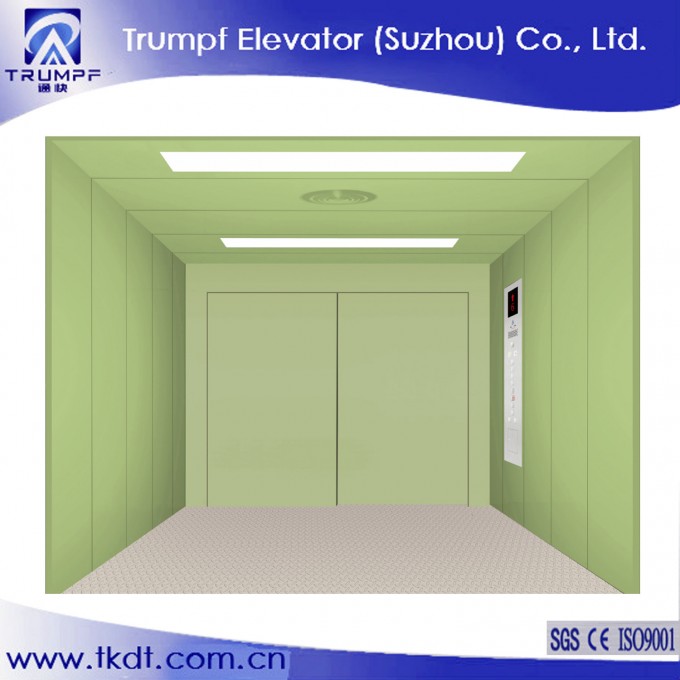

Decoration

Model	THJ/TF
Ceiling	Painted steel
Ventilation	Round fan
Car wall	Painted steel plate
Car door	Painted steel plate
Floor	Checkered steel plate

Packing &Delivery
Using strong exporting plywood cases, suitable for long distance transportation and well protected
against dampness, moisture, shock and rust.


Company profile
TRUMPF Elevator (Suzhou) Co., Ltd. is located in Suzhou City of Jiangsu Province, China in
core area of Changjiang River Economic Zone. It is situated along the beautiful Taihu Lake.
The registered capital of the company is RMB 200 million yuan, and the plant area is more
than 15000 square meters. It is amodern enterprise specializing in the research and
development, manufacture, sale, installation and maintenance of elevators.


Our Exhibition
We have held exhibitions in many countries, such as Iran, Egypt, Germany, Russia, etc.,
and the upcoming Saudi Arabia exhibition.

Our Cetification


FAQ

Q1: Are you trading company or manufacturer?
A1: We are manufacturer.

Q2: How long is your delivery time?
A2: Generally it is 15-20 days if the goods are in stock or it is 20-45 days if the goods are notin stock, it is according to quantity.

Q3: What is your terms of payment?
A3: T/T or L/C at sight.

Q4: What is the warranty period.
A4: 12 months after shipment.

Q5: Where are your factory? Can you pick us at airportto visit you?
A5:Yes. We are in Jiangsu. Yes, you can, we are very welcoming.
