Detailed Description

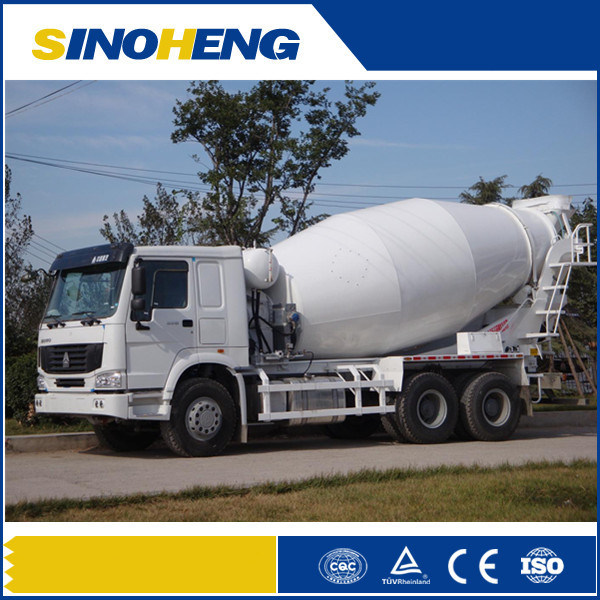

Howo 6x4 co
ncrete mixer truck:
Features:
1, the use of special wear plate manufacture mixing tube and leaves.
2, stirring blade used for the production of die stamping.
3, tanks and docking blade welding through large rotary tooling and high accuracy.
4, hydraulic systems are all used im
ported components, compact structure and superior performance.
5, complete modeling chic, beautiful, compact and reasonable.
6, efficient and flexible operating system, and a
bout realizing I feed operation three together.
7, tank welding cloudburst after ptreatment process to achieve removing rust and rustproof.
| Model | ZZ5257GJBN4047C |
| Chassis model | ZZ1257N4047N1 |
| Driving form | 6x4 |
| Total mass(kg) | 25000 |
| Curb weight(kg) | 13100 |
| Engine | WD615.87(290HP), Euro II emission standard
Engine type: Diesel 4stroke direct injection engine,
6cylinder inline with water cooling, turbo-charging & inter cooling |
| Cab | HW76(one bed with A/C) |
| Transmission | HW15710(10 Forward, 2 Revise) |
| Front axle | HF7 (7000kg) |
| Driving axle | HC16 (16000kg x 2) |
| Steering system | ZF8098 |
| Tire | 12.00R20 (11pcs, including one spare tire) |
| Wheelbase(mm) | 3850+1350 |
| Front/rear Overhang (mm) | 1500 / 2240 |
| Approach/departure angle(°) | 16 / 26 |
| Maximum speed(km/h) | 75 |
| Number of spring leaf | 10/12 |
