Detailed Description
Shacman F3000 6X4 Co
ncrete Mixer Truck 12M3
We also have Other mixer trucks&co
lon;
4x2 small / mini mixer truck, 6x4 mixer truck, 6x6 mixer truck, 8x4 mixer truck, 3 axles mixer semi trailer....
Drive Type | Mixing tank capacity | Chassis brand |
| 4x2 | 2cbm to 6cbm | Dongfeng,Yuejin,forland,CDW,etc |
| 6x4 | 8cbm to 12cbm | Dongfeng,FOTON,SINOTRUK,SHACMAN,JAC,Beiben,HINO,etc |
| 8x4 | 10cbm to 16cbm | Dongfeng,FOTON,SINOTRUK,SHACMAN,JAC,Beiben,HINO,etc |
truck paramter&co
lon;
| Products Technical Specification |
| Brand-Series | SINOTRUK HOWO |
| Product Name | 6*4 Concrete mixer truck |
| Chassis Model | ZZ1257N4048W |
| Emission Standard | Euro 2 |
| Fuel type | Diesel |
| Cabin | HW76,With A/C,Sleeper |
Whole vehicle
main dimensions (mm) | Overall dimensions (L×W×H) | 9900*2500*3900 |
| Tank dimensions | 12cbm |
| Wheel base | 4100+1450 |
| Front overhang | 1410 |
| Rear overhang | 2440 |
| Min. ground clearance | 540 |
| Weight data (kg) | G.V.W | 25000 |
| Curb weight (chassis) | 15200 |
| Max payload | 25000 |
Whole vehicle
main performance | Max. speed (km/h) | 85 |
| Max. slope of climb (%) | 30 |
| Engine | Model | WD615.47 |
| Maximum power | 247kw / 336hp |
| Number of cylinders | 6 |
| Displacement (L) | 9.726 |
| Engine Manufacturer | Weichai Power Co., Ltd. |
| Transmission | Brand | HW13710 |
| Number of gears | 10 forward gears& 2 reverse |
| Axle | Rear Load capacity (ton) | HC16 |
| Suspension | Leaf spring | 10/13, |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Dual-circuit air brake |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 12.00R20 & 10+1 |
| Mixing Tank Description |
| Material and Thickness | Q345,Cylinder wall thickness 5mm, headthickness 6mm |
| Mixing capacity | 12cbm |
| Mixing tube angle | 12.5 ° |
| Feed rate | 3 m3 / min |
| The feed speed | ≥ 1.5 m3/min |
| Fill Rate | 63% |
| Residual Discharge rate | <0.2% |
| Slump range | 40 ~ 210 mm |
NOTIICE&co
lon;
We guarantee that all our goods has gone through strict quality co
ntrol and testing to ensure that it is in good co
ndition before ship out.We strive for 100% customer satisfaction on every sale we complete.

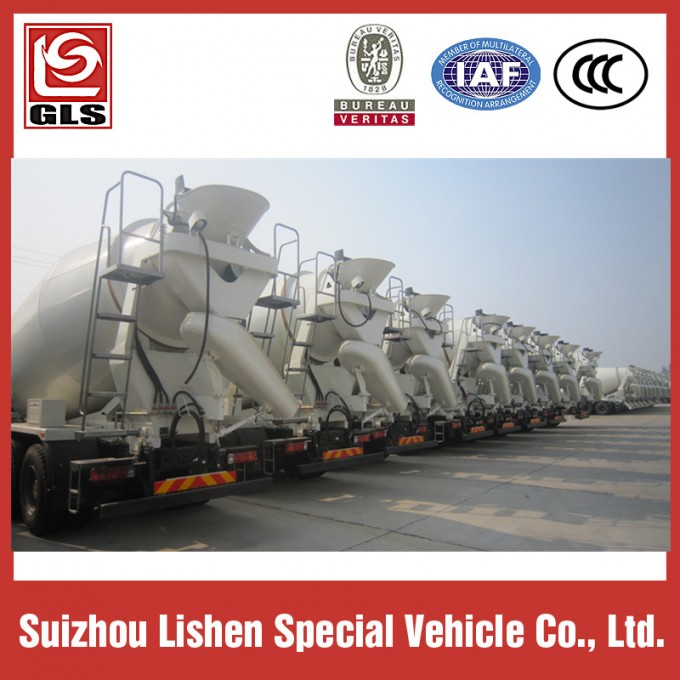

Product Image
