Detailed Description
Technical Specifications of HOWO 6*4 6CBM co
ncrete mixer truck
| Item | unit | parameter |
| Product Name |
| HOWO concrete mixer truck |
| Chassis model |
| ZZ1257N3847C |
| Overall dimensions | mm | 9350×2500×3990 |
| Fact cubage | m3 | 6 |
| Net weight | kg | 12870 |
| Wheel base | mm | 3825+1350 |
| Front/rear overhang | 1500/2775 |
| Approach/departure angle | ° | 16/12 |
| Exhaust/hp | ml/kw | 9726/247 |
| Max speed | km/h | 75 |
| Tire specification | 12.00R22.5,one spare | Engine type | WD615.95E |
| Traction system | 6×4 | Transmission | 10 Forward,
1 Reverse |
| Number of axles | 3 | Electric system | 24v |
| Operation control system | Power steering | Allowable passengers in cab | 3 |
Gearbox HW13710 ,front axle HF9 , rear axle HC16 , ZF8098, 336hp.
Reducer: Italy PMP, Hydraulic pump: Italy PMP, Hydraulic motor: Italy PMP, Radiator: Changzhou or Wuxi, Body material: 16MnQ345 |
| Speed of In | 3M³/min |
| Speed of Out | 2M³/min |
| Tilt angle | 13° |
| Engine | Sinotruck Diesel engine (Euro III) |
| Production cycle | 30-40 days |
| Warranty | 12 month, from the date of supply |

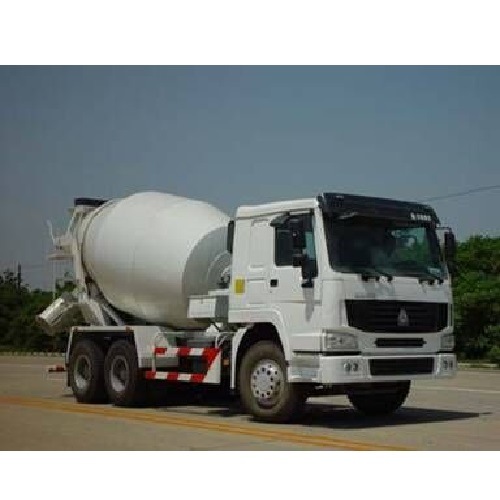

Product Image
