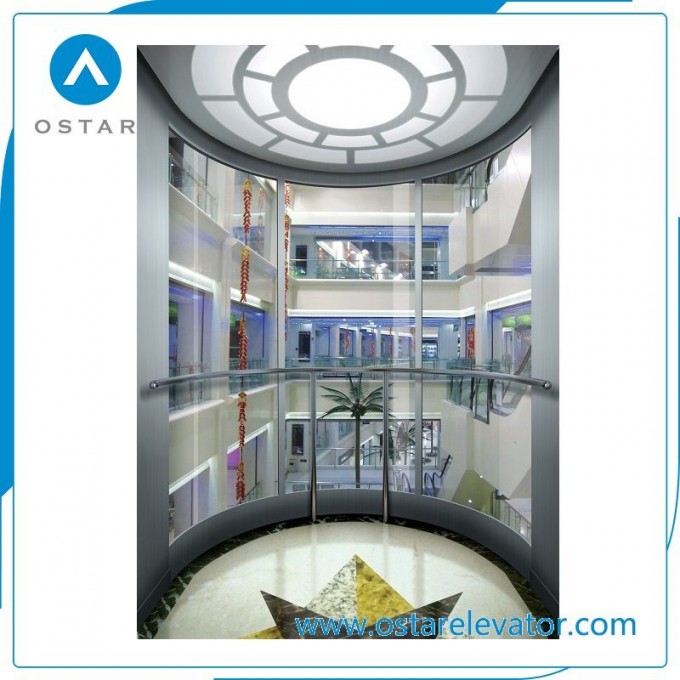

Shopping Mall Used Glass Panoramic Elevator Oservation Lift

Company Introduction:
Suzhou Ostar Elevator Co., Ltd. provides various kinds of complete lifts, cover home lift, observation lift, hospital lift, freight lift, escalator etc. Our elevators are with novel structure, outward apperance and elegant models, which are popular in Southeast Aisa, Middle East, South America, South Africa and other regions. So far we have been a partner with customers from more than 30 countries. We, Ostar Elevator, will continue to provide excellent service for overseas clients with philosophy of strict standard, high quality and best service.


Advantages of observation lift:
1. Energy-saving
2. Noble and elegant
3. Cozy and smooth
4. Safe and reliable
It's more and more widely applicable for the large-size construction areas such as guesthouse, shopping center, office building, resturant etc.

Specification:

Cabin Shape	Semi-circular shaped/ Cutting-angle-type			Square Shaped
Loading Capacity (kg)	630	800	1000	630	800	1000
Speed (m/s)	1.0	1.0	1.0	1.0	1.0	1.0
Car Net Size (mm) W*D	1100*1600	1200*1800	1400*1850	1300*1250	1400*1350	1600*1500
Door-opening Type	CO	CO	CO	CO	CO	CO
Door-opening Size (mm) W*H	800*2100	800*2100	900*2100	800*2100	800*2100	900*2100
Hoistway Net Size (mm) W*D	2250*2200	2350*2350	2550*2400	2150*1750	2250*1850	2450*2000
Top Floor Height (mm)	4500	4500	4500	4500	4500	4500
Pit Depth (mm)	1800	1800	1800	1800	1800	1800
Max. Travelling Height (m)	60	60	60	60	60	60

Production & Package & Shipment:


FAQ:
Q1: What is manufacturing norms for your elevators?
Our elevators are designed and manufactured according to elevator norms GB7588: 2003 (Equal to EN81).
Q2: What is the lead time of your elevators?
Our lead time is within 35 working days upon receipt of down payment and confirmed technical documents.
Q3: What is your payment term?
Our payment term is 30% down payment by T/T in advance and balance payment paid before shipment.
Q4: What is the guarantee for your elevator?
Our guarantee period is one year; but not includes damage caused by the human reason or force majeure.
