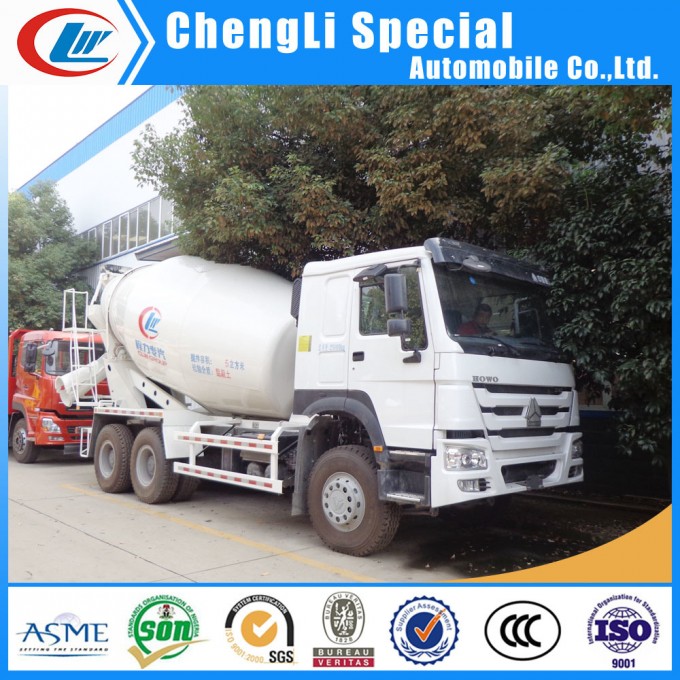

Sinotruk Howo 6cbm 8cbm co
ncrete cement mixer truck 8m3
| CHASSIS SPECIFICATION |
| Cabin | Driving type 6x4 Left Hand Drive |
| HOWO 76 Standard Cab, Two seats, with air conditioner, 70° hydraulically tillable to the front. |
| Vehicle Main Dimensions | Dimensions(L xW xH)(mm) | 9000x2500x3950 |
| Wheel base (mm) | 3250+1350 |
| Overhang (front/rear) (mm) | 1430/2245 |
| Wheel track (front/rear) (mm) | 2035/1850 |
| Approach/Departure angle(°) | 16/27 |
| Weight in KGS | Curb Weight | 13420 |
| GVW. | 31000 |
| Front axles loading capacity | HF 92x9000 |
| Rear axles loading capacity | HC16 2x16000 |
| Max. driving speed(km/h) | 82 |
| Engine | Model | WD615.69 |
| Type | 4-stroke direct injection ,6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
| Horse Power(HP) | 336 |
| engine capacity(ml) | 9726 |
| Emission standard | Euro II |
| Gearbox | HW15710, 10forwards &2reverse |
| Clutch | Reinforced diaphragm clutch |
| Steering Gear | ZF8118 ,Power steering, hydraulic steering with power assistance |
| Fuel tank (L) | 400 |
| Tire | 12R22.5, 10pcs +1 spare |
| Brakes | dual circuit compssed air brake |
| 12CBM DRUM SPECIFICATION |
| Mixer Drum | Mixer Capacity | 8 cubic meters |
| Drum thickness | 5mm |
| Blade thickness | 4mm |
| Tanker Material: | 16MnQ345 Carbon Steel |
| Filling Rate(%) | 59 |
| Input Speed (m3/min) | ≥2.8 |
| Output Speed (m3/min) | ≥1.2 |
| Surplus Ratio | ≤0.5 |
| Tanker Rotate Speed(rpm) | 0~17 |
Drum Drive System | Hydraulic Pump | Italy Brand: PMP |
| Hydraulic Motor | Italy Brand: PMP |
| Speed Reducer | Italy Brand: PMP |
| Radiator | KAITONG |
| Water System | Water Tank Volume(L) | 400 |
Details of Co
ncrete Mixer Truck
