True Online UPS 1kVA Pure Sine Wave
True Online UPS 1kVA Pure Sine Wave

True Online UPS 1kVA Pure Sine Wave

Categories: other , Elevators & Lifts , Escalator , Heavy Duty Escalator
FOB Price:150.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:40 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:MrHolmesYu
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description
ModelNP1101
Capacity1 kVA
Power Rating800 W
Input Voltage115 ~ 300 Vac, single phase + N + PE
Input Frequency46 ~ 64 Hz (auto sensing)
Input Power Factor>0.95
Output Voltage220/230/240 Vac +/-1%, single phase + N + PE
Output Frequencyinput frequency synchronized (AC Mode);
50/60 Hz +/-0.1% (Battery Mode)
Output Power Factor0.8/0.9
Wave FormClean Sine Wave
Crest Factor3 : 1
Battery TypeVRLA
Battery Voltage48/96/192 Vdc
Overload Abilitycontinuous / 30" / 1" (105% / 125% / 150%)
Transfer Time0 ms
DisplayLED (optional LCD)
Communication PortRS 232 + intelligent port
Operation Temperature0~ 50ºC
Humidity20% ~ 90% (non-condensing)
Alarmbuzzer + LED indicators (+optional LCD display)
StandardsEMI: IEC62040-2; EMC: IEC61000-4-2~5
DimensionW144*D350*H230 mm
Net Weight6.5 kG
PRODUCT INTERIOR

True o<em></em>nline UPS 1kVA Pure Sine Wave
RECTIFIER PART

True o<em></em>nline UPS 1kVA Pure Sine Wave
PRODUCT STRUCTURE
True o<em></em>nline UPS 1kVA Pure Sine Wave
MILITARY BRAND BREAKERS & SWITCHES

True o<em></em>nline UPS 1kVA Pure Sine Wave

True o<em></em>nline UPS 1kVA Pure Sine Wave
FEATURES
Office Environment Special
Transformerless Design
Electronic Circuit Topology
Highly Integrated Interior Structure
Max 8 Units Parallel Connection Available
Quiet & Light
Desk Footprint
Automatic Restart
Bypass Mode Available
Optional Bypass Isolation Transformer
Built-in Manual Maintenance Bypass Switch
LED/LCD Display Options
FAQ for DISTRIBUTORS
Q: Can I request your catalogue and price list for study first?
A: Yes, you are well welcome.
Q: Can I request a factory visit before an order?
A: No problem, you are always welcome.
Q: Do you have any reference?
A: Telecel (Zimbabwe) is on going until this November. Zambia National Commercial Bank is on going until this November. Prudential Life Assurance (Zambia) Ltd. finished in this June. Haramaya University (Ethiopia) finished in this May. Kenya Airways finished in 2016.
Q: Which certificates do you have?
A: We are currently certified by CE and ISO9001:2008. If necessary, we can get SONCAP, COC, BIS, SABS, FCC, TUV, or any other certificate approved.
Q: Can I ask for OEM?
A: Yes. Generally the goods will be printed on your LOGO and nameplates. Original designs and customized packages are also available.
Q: What's the MOQ?
A: 50 EA. 200 EA for OEM. If customized packages or designs are needed, then it comes to 500 EA. We also provide sample order for any quantity.
Q: What's the lead time?
A: Depends on quantity and specifications. Most cases it's within 15 ~ 20 working days.
Q: Which shipment method do you provide?
A: By sea, or air, or land. For sample order, we will recommend shipment by air.
Q: What's the trade term do you provide?
A: FOB, CFR, EXW, CIF, DDP.
Q: What's your payment facility?
A: T/T is best recommended. L/C and PayPal available too.
Q: What's your warranty term?
A: Standard warranty period is one year, also provide two years or extended warranty for certain cases. Replacements will be sent during the period.
Q: Do you provide training or onsite services?
A: We provide training courses in our factory. onsite services and onsite training courses are also available as value added services.
Q: Can I be your distributor or reseller in my country or region?
A: Of course. We are open to any territorities except of Philippine, Papua New Guinea, Zimbabwe, and Zambia, as we already have exclusive distributors or strategic partner there.
FAQ for USERS
Q: How can I select appropriate UPS model?
A: Our professional sales team or technician will give recommendation according to details of the load. Generally, our static online UPS are for common electronics like PC, printers, servers, and routers, offline UPS for home appliance (including PC), industrial UPS for elevators, escalators, oil field, production facilities, heavy duty machines, telecoms equipment, medical devices, and other critical facilities, modular UPS for data centers, control centers, and BMS.
Q: How long does the UPS keep supplying after AC fails?
A: Depends on the battery configuration. If the UPS is supplied by internal batteries, which has batteries of certain capacity and certain quantity, it usually lasts for 5 ~ 15 minutes at full load. If you use external batteries to supply the UPS, theoretically you can connect any quantity of batteries for any time of backup, whether 30 minutes, or 1 hour, or multiple hours.
Q: What kind of batteries are used?
A: Sealed VRLA (Valve Regulated Lead Acid) batteries. They are usually rated as 12 Vdc.
Q: How can I operate the UPS?
A: The UPS can work automatically after electrical wired including automatically restart after a failure. You can also operate it manually via buttons or touch screen on the front panel. The operation status or electrical information will be displayed through the LED screen or touch screen. And if a fault happens, the UPS will alarm audibly or visibly.
Q: Can the UPS be remotely monitored?
A: Yes, via ports of RS485, RS232, RJ45, RJ11, or USB. SNMP or TCP/IP protocals are available.
Q: Does the UPS have internal protections?
A: No worries. Our UPS are protected from overload, short circuit, over-voltage, over-current, over-temperature. We also equip the industrial UPS with bypass function. And manual maintenance bypass is also available as required.
Q: What kind of warranty can I have?
A: We offer at least one year of warranty. You will receive the replacement if any component fails during the period.
Q: How will you ship the goods?
A: Depends on quantity. We have various freight forwarders who can help ship goods either by air, or by sea, or by land. For small orders like single unit or 2 units, we will ship it by air.
Q: Which payment facility do you provide?
A: PayPay, and T/T.

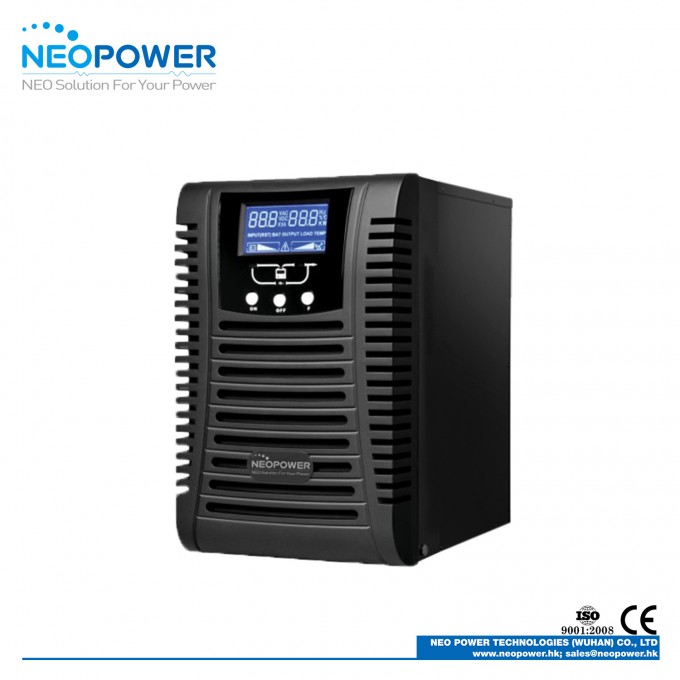

Product Image
