Detailed Description

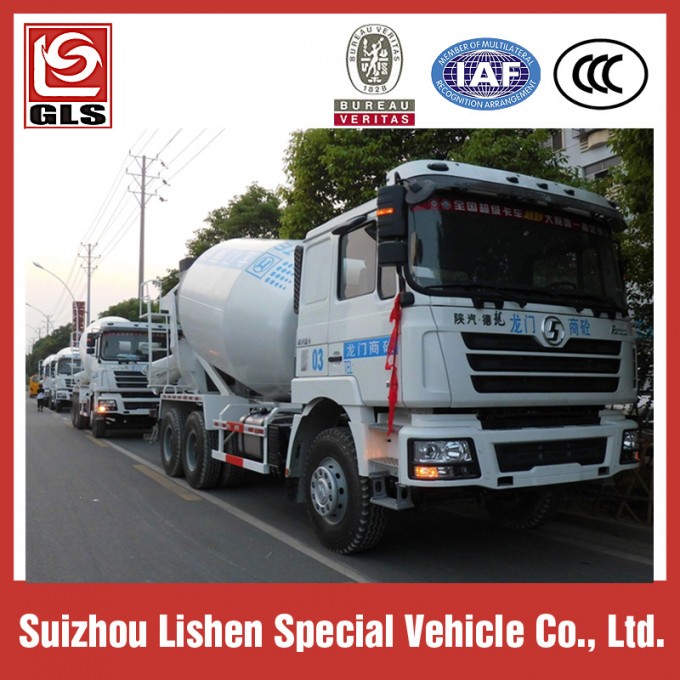

Shacman F3000 6X4 Co
ncrete Mixer Truck 12M3
We also have Other mixer trucks&co
lon;
4x2 small / mini mixer truck, 6x4 mixer truck, 6x6 mixer truck, 8x4 mixer truck, 3 axles mixer semi trailer....
Drive Type | Mixing tank capacity | Chassis brand |
| 4x2 | 2cbm to 6cbm | Dongfeng,Yuejin,forland,CDW,etc |
| 6x4 | 8cbm to 12cbm | Dongfeng,FOTON,SINOTRUK,SHACMAN,JAC,Beiben,HINO,etc |
| 8x4 | 10cbm to 16cbm | Dongfeng,FOTON,SINOTRUK,SHACMAN,JAC,Beiben,HINO,etc |
truck paramter&co
lon;
| Products Technical Specification |
| Brand-Series | SHACMAN-F3000 |
| Product Name | 6*4 Concrete mixer truck |
| Chassis Model | SX5256GJBDR404 |
| Emission Standard | Euro 4 |
| Fuel type | Diesel |
| Cabin | F3000 HALF ROW with A/C,Sleeper |
Whole vehicle
main dimensions (mm) | Overall dimensions (L×W×H) | 9810*2500*3950 |
| Tank dimensions | 12cbm |
| Wheel base | 3975+1400 |
| Front overhang | 1525 |
| Rear overhang | 1975 |
| Min. ground clearance | 450 |
| Weight data (kg) | G.V.W | 25000 |
| Curb weight (chassis) | 13700 |
| Max payload | 25000 |
Whole vehicle
main performance | Max. speed (km/h) | 77 |
| Max. slope of climb (%) | 30 |
| Engine | Model | WP12.375E40 |
| Maximum power | 276kw / 375hp |
| Number of cylinders | 6 |
| Displacement (L) | 11.596 |
| Engine Manufacturer | WeiChai power |
| Transmission | Model | 9JS180 |
| Number of gears | 9 forward gears& 1 reverse |
| Axle | Front Load capacity (ton) | 7.5 |
| Rear Load capacity (ton) | 16 MAN Hub reduction rear axle |
| Suspension | Front | 10- Leaf spring |
| Rear | 12-leaf spring |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres & Quantity | 12.00R20 14PR & 10+1 |
| Mixing Tank Description |
| Material and Thickness | Q345,Cylinder wall thickness 5mm,
headthickness 6mm |
| Mixing capacity | 12cbm |
