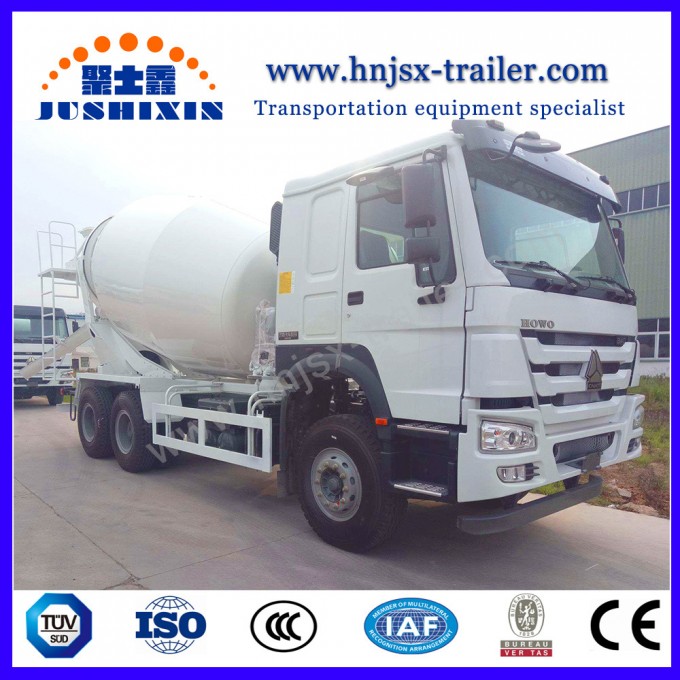

HOWO 6*4 8/9/10/12/14m3 Heavy Duty Concrete Mixer/Mixing Truck

HOWO 6*4 8/9/10/12/14m3 Heavy Duty Concrete Mixer/Mixing Truck




1. Configuration
The product parameters in the table below are just a reference, not absolute.If you think the configuration is
reasonable, you can order directly.If you have your own list of parameters, we can tailor it to your needs.
2. Price
The price shown in the product introduction is a range price, and the final price is determined according to the
configuration of the product and the quantity ordered.
3. OEM&ODM
We also accept OEM and ODM.If you want the product to embody your own brand, we can do it.Or if you are
interested in understanding our abilities and ways of cooperation, we are always welcome.
4. Service
Whether you want to buy our products or not, we are happy to serve you.As long as you have questions, we'll
give you the answer.

Specifications
DrivingType	6X4	ModelNo.	JSX9671CMT32
WholeDimension	8560*2496*3600mm	Wheelbase	3825+1350mm
Loadingweight	30ton	Maxspeed	90km/h
Engine
EngineNo.	WD615.47	CylinderNo.	6
Fueltype	Diesel	Emission	9.726L
Emissionstandard	EuroIV	Horsepower	320hp
Gearbox
GearboxNo.	HW19710	TransmissionType	Manual
Forward	10speed	Reverse	2speed
ConcretemixturetruckChassisandtire
Frontaxle	HF9	Frontaxleloading	9000kg
Rearaxle	HC16	Rearaxleloading	16000kg
Tires	12.00R20	Tirequantity	11,withsparetire
MixtureTank&Hydraulicsystems
Tankmaterial	Carbonsteel,Q235B	Tankthickness	5mm
PumpandMotor	Eaton	Reducer	Bongfiglioli

Additional information:
1.The parameters of the above products are just common configurations, not absolute.The specific configuration
of the product will be executed according to your needs.
2.The final price of all products is determined by the product configuration you choose.Therefore, if you are
interested in purchasing products, please contact us in time.

Chassis: There are a lot of chassis in the mixer, such as HOWO, CAMC, FOTON, Dongfeng, etc.The small square mixer adopts the driving mode of 4X2, which is the driving mode of the larger mixing vehicle, 6X4 and 8X4.

Auxiliary frame: It is mainly composed of main beam, front part and back part, which plays the role of connecting the chassis girder and supporting the mixing drum.

Cleaning system: It mainly consists of water tank, air pssure gauge, valve and pipeline.The main function is to clean the mixing drum, and the cleaning system also has a cooling effect on the hydraulic system.

Hydraulic system: he engine driven by the extractor is converted into hydraulic energy, and then the motor output is mechanical energy, and the reducer drives the mixing drum to rotate.

Mixing drum: The most important part of the vehicle, most of the mixing drum USES a light tone.The mixing drum is loaded with concrete containers. The inner wall of the cylinder is filled with spiral blades, and the concrete is inseparable from the blade in the process of stirring and moving in and out.

Row by Row: It is located at the rear of the car, which is composed of feeding hopper, hopper, main discharge chute, auxiliary discharge chute and bracket locking rod.

about the details:
In order to produce a high quality product, the details are very important.The important parts we use, such as
engines, hydraulic pumps and speed reducers, are well-known brands in China and even the world.

about the factory:
Our factory has very advanced equipment, so the production efficiency must meet your order quantity.As you
can see in the picture, the production process is very elaborate.Above all, our workers are very serious and
efficient.All I have said above is believable and guaranteed.


Q:Why did I choose you?
A:Because we have rich experience in foreign trade, so we can provide timely and high-quality service to different
customers.We adhere to the principle of "customer first".

Q:Is the quality of your products guaranteed?
A:You can rest assured of that.Our products have professional certification, such as ISO, CCC, IAF, etc.Besides,
you can come to our factory for a visit and we will have a very good reception.

Q:How about the after-sales service?
A:We also have the general after-sales service.In addition, when you encounter problems that cannot be solved,
we will have technical personnel to help you solve them in your country

Q:Do you have a discount on your price?
A:The price of a single product is determined by the product configuration you choose.If your order is large or can
be cooperated for a long time, we will give you a satisfactory price.
