Detailed Description

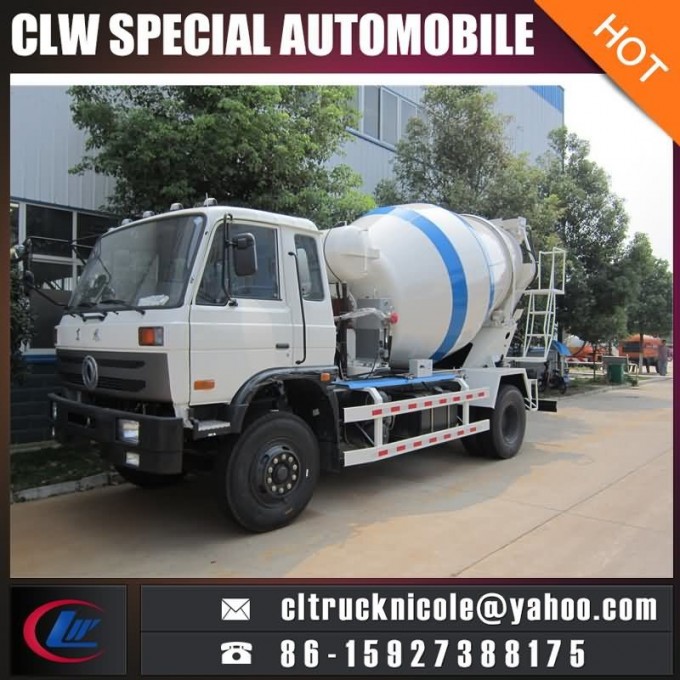

6CBM Do
ngfeng Euro 34x2 Co
ncrete Mixer Transport Truck, with chassis from Do
ngfeng and engines from Do
ngfeng Cummins, or Yuchai. And Besides co
ncrete mixer truck, we also produce water fire truck, foam fire truck, dry powder fire truck, tank truck, road sweeper, vacuum cleaner, garbage truck, road sweeper washing truck, caravan, aerial platform truck, trailer, water truck etc. And besides Euro 3, we can also offer Euro 5, Euro 4, Euro 2engines and trucks.
Kindly check main specifications as below:
| Name | 4CBM Dongfeng Euro 34x2 Concrete Mixer Transport Truck |
| Item | Specifications | Item | Specifications |
| Truck |
| Model | YZR5120GJB3 | Gross Weight (kg) | 12000 |
| Overall dimensions | 7650,7950×2490×3900mm | Payload (kg) | 4200 |
| Wheelbase (mm) | 4200, 4500 | Curb Weight (kg) | 7605 |
| Front Track (mm) | 1940 | Approach Angle | 25° |
| Rear Track (mm) | 1860 | Departure Angle | 13° |
| Number of axles | 2 | Front Overhang (mm) | 1250 |
| Traction system | 4×2 | Rear Overhang (mm) | 2200 |
| Max speed (km/h) | 75 | Number of Tyres | 6 |
| Front Axle Load (kg) | 4600 | Tyre Specification | 10.00-20,10.00R20 |
| Rear Axle Load (kg) | 7400 | ABS | √ |
| Paint | White, Blue, Red, etc | Allowable Cab Passengers | 3 |
| Fuel | Diesel | Body Film | 3M |
| Chassis |
| Model | EQ3120GSZ3GJ | Brand | Dongfeng |
| Emission Level | Euro 3 | Chassis Overall Dimension | 7100,7400×2462×2690mm |
| Gross Weight (kg) | 12000 | Leaf Spring | 10.00-20, 10.00R20 |
| Curb Weight (kg) | 4700 | Transmission | 9 speeds, manual |
| Engine (Motor) |
| Brands | Model | Displacement | Rated Power |
| | | |
| Dongfeng Cummins | B170-33 | 5.9L | 125kw (170hp) |
| Dongfe | | | |
| Superstructure |
| Delivery Capacity | 4 CBM | Drum Capacity | 8 CBM |
| Feeding speed | ≥2 CBM/min | Drum Rotational Speed | 3 rpm |
| Unloading speed | ≥1.5 CBM/min | Water Supply Model | Air pssure water supply |
| Concrete Slump (mm) | 80-220 | Water Tank Capacity (L) | 400 |
| Residual Rate | ≤ 0.4% | | |
| Remarks |
| Production cycle | 15-20 working days |
| Warranty | 12 months |
