Detailed Description
Mercedes Benz Technology Beiben 6X4 8m3 Co
ncrete Mixer Truck
PRODUCTS ADVANTAGE
*OriginalPrice:FOB,CNF/CFR,CIF
*Certificates:CCC,ISO,BV,GJB,CQC
*prom
ptlyDelivery:15-30days
*ExcellentAfter-saleService and Customization Service.
| Beiben 8X4 concrete mixer truck |
| |
| Cab | made by full steel material, anti-crash performance can be ensured by double hollow chamber structure. Inner A/C |
| Kerb weight | 16825kg |
| Gross Vehicle Weight | 31000kg |
| Wheelbase(mm) | 1500+3850+1450 |
| Engine | Brand:WEICHAI Model:WP10.380E32 Emission Standard:EURO 3 |
| Power (kw/hp):276/375 Max torque:1460N·m/1200-1600rpm |
| Type:Diesel Displacement (L):9.726 |
| Transmission | Model:9T-180 |
| Clutch | Single dry frictional disc,Hydraulic boosting |
| Steering | Model:TAS85 |
| Brake | Service brake:Brake gap can be adjusted automatically, double circulation air brake system Assistant brake:Engine exhaust brake Park brake:Potential springs pssing on middle and rear wheels |
| frame | Fish belly shape, variable width, variable sections |
| Front axle (Mercedes Benz Technology) | 6.5 ton non-driving steering axle |
| Middle and Rear axle (Mercedes Benz Technology) | 13ton strengthened axle, double reduction driving axle |
| Speed Ratio | 5.263 |
| Tyre | 12.00-20 |
| Fuel tanker capacity L | 300 |
| Mixing Volume | 6.27CBM |

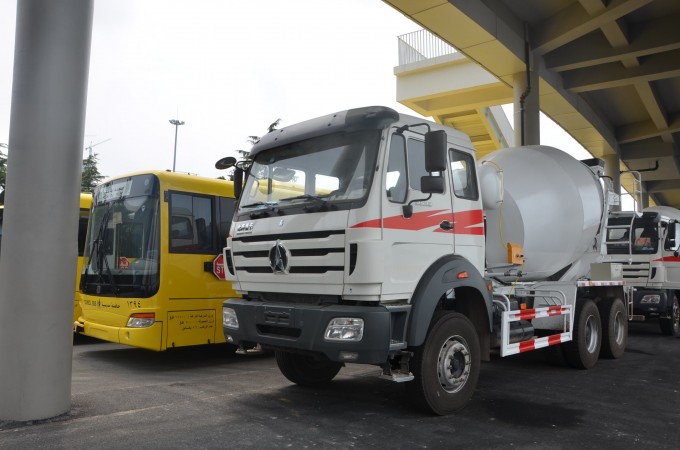

Product Image
