2.5 Cbm Concrete Mixing Pump Plant Mixer Truck

Introduction of 2.5 CBM Concrete Mixing Pump Plant Mixer Truck

1.The vehicle size is small, suitable for limited site and widely used in new rural construction, urban construction ,tunnel ,airport ,seaport ,high-speed rail site and so on.

2. High strength steel plate, enhance vehicle load capacity. the vehicle with high stability

3.Small capacity mixing drum design, the angle is lower than same profession, effectively reduce the gravity of vehicles improve thedriving safety.

4. Rolling ring and mixing drum use 16mn overall forging normalizing manufacturer and processing.

5.Mixing blade with varying pitch design, and simplify the feeding device, ensure the speed faster and mixing performance better.


Parameter of 2.5 CBM Concrete Mixing Pump Plant Mixer Truck

Attributes	Unit		Parameters
Actual mixing capacity	m3		2.5
Mixing drum capacity	m3		3.5
Angle of inclination	0		16
Rotational speed	r/min		0-14
Rotational direction(Forward observation from rear)	Feed:Clockwise anddischarge:Anticlockwise
Mixing drum vanes	Two spiral vanes and auxiliary blades
Productivity	4 batches per hour
The slump of concrete	mm	70-260
Hydraulic Transmission System
Oil Pump		CBF-32
Motor model		BMS-100
Reduction box/speed ratio		HJ220
Water supply System
Water supply		Bring water agencies
Water tank volume	L	450
Chassis and Engine Parameters
Engine Model
Form		Direct injection four stroke water cooled turbocharged diesel engine
Air cylinder amount		4
Displacement	L	4.58
Rated power	kw/r/min	81/2300
Maximum torque	N.m/r/min	450/1500-1700
Maximum travelling speed	km/h	24
Minimum turning diameter	M	8
Gradeability	%	24
Tire		9.00-20
Driving form		4 wheel drive,4 wheel steering
Vehicle equipment quality	kg	6250
Maximum loading weight	Kg	6500
General weight of the carload	kg	12750
overall dimension(L/W/H)	mm	6700x2400x3100

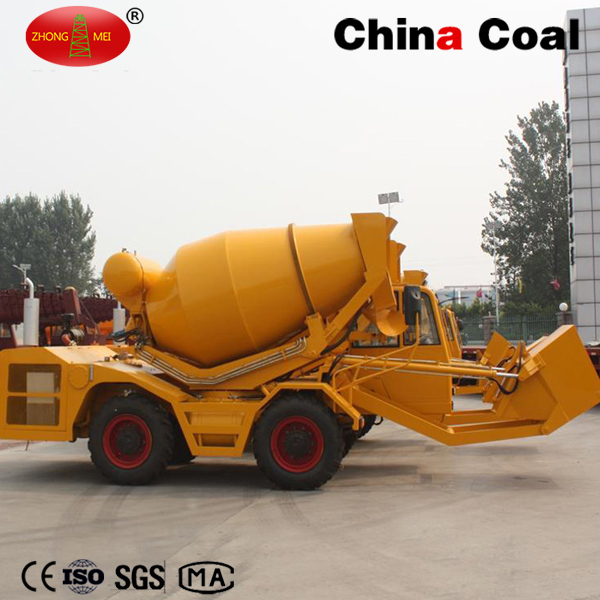

Photos Of 2.5 CBM Concrete Mixing Pump Plant Mixer Truck
