Zhengzhou Hzs25 Concrete Mixer Truck Batching Plant Machine Price

China concrete cement mixer concrete batch plant price

Product Description

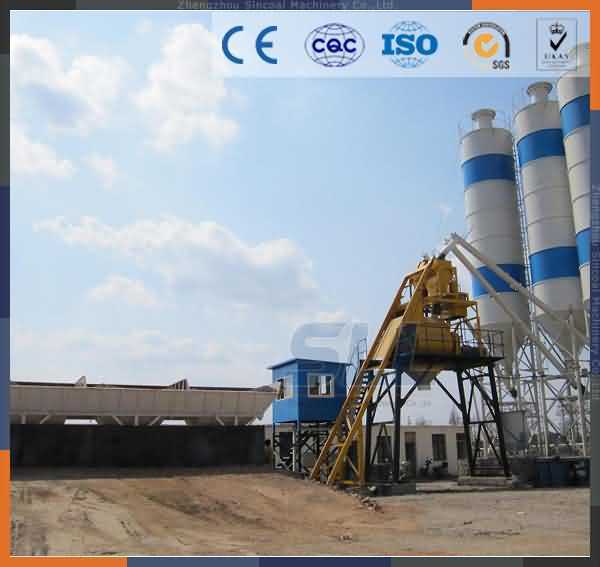

Zhengzhou SINCOLAHZS series hopper wet concrete Batching plant manufacturer belongs to compulsory and efficiency equipment. It includes JS concrete mixer, PLD batching machine,cement silo,conveying system and control system.And also has the characteristic of mixing well, high productivity, highly automated, high flexibility, convenient operation, and good stability. CE certificate High efficiency and ptty price 35m3 mobile concrete admixture mixing plant.




Features

1.High Quality, Reliability and Safety

2.High Accuracy Digital Weighing System
3.Integrated Design, Compact Structure,Space Saving
4.All Component Equipments are of China Famous Brand.
5.High Layout Flexibility, Fast and Easy Installation and Remove
6.Low Dust, Low Noise, High De-dusting Area ,High Efficiency and Envirometal Protection with Electric Pulse De-duster

Key specifications:

Theoretic productivity: 25m³ /hour
Cycling period: 72 seconds/batch
Maximum aggregate size: 60/80mm
Nominal capacity of mixer: 500L
Installed capacity: 56kW
Loading material height: 3, 800mm
Dimensions: 15, 420 x 13, 182 x 18, 230mm
Configurations:
Main mixer: JS500 twin shaft concrete mixers
Aggregate bins: PLD1200
Aggregate feeding mode: Skip hoist
Cement bin capacity: 2 x 60T
Capacity of aggregate silo: 3 x 2.2m³
Species of aggregate: 3
Control cabinet: Equipped with air conditioner
After-sale service:
Gratis professional technology consultant service and most suitable product recommendation
Gratis professional technology training and gratis direction on installment and debugging
Qualified operator training
Spare parts supply
Warranty terms: More than 12 months

Main Technical parameters:

Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS100	HZS120	HZS150	HZS180	HZS200
Capacity (m3/h)	25	35	50	60	75	90	100	120	150	180	200
capacity of per batch(m3)	0.5	0.75	1	1	1.5	1.5	2	2	3	3	4
Discharging Height (mm)	3800	3800	3800	3800	3800	3800	3800	4200	4200	4200	4200
Mixing System	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS1500	JS2000	JS3000	JS3000	JS4000
Aggregate System	PLD800	PLD1200	PLD1600	PLD2400	PLD2400	PLD2400	PLD2400	PLD3200	PLD3200	PLD4800	PLD4800

Concrete mixing plant packaging

40' standard export packing Containers or as your order
1.Use crane to load into the container
2.Wire cable fastened inside the container
3.Cork wood to forbid collision

Company Introduction

Zhengzhou Sincola Machinery Co., Ltd. is a high-technology, modern enterprise established in 2001, professionally engaged in the R&D and manufacturing of dry mortar production line.
We have 100 staffs full-time, more than 10 people with middle and senior titles and technical, building area of 9000 square meters.

Zhengzhou Sincola Concrete Batch plant is suitable for the commodity and construction concrete in each kind of architectural project,including the water conservancy,the electric power,the railroad,the road,the tunnel,the arch of bridge,the harbor-wharf and the national defense-project and so on, the applicable scope is extremely wide spad.

Our Services

1.Pre-sale service:
Sincola machinery will give you suggestive productivy, as your request to make a blueprint for you, then make the accuracy quotation, let you know all the parts of the concrete batching plant.
2.Sale service:
Our advanced technicians will be sent your jobsite to guide operation and installation. Then teach how to use the machines, field test accuracy, make sure the plant is all well down
3.After-sale service:
We give you one year warranty, when something wrong in the plant, we will teach you how to fix it, if needs, our engineers can come to your work site to help you fix it.
