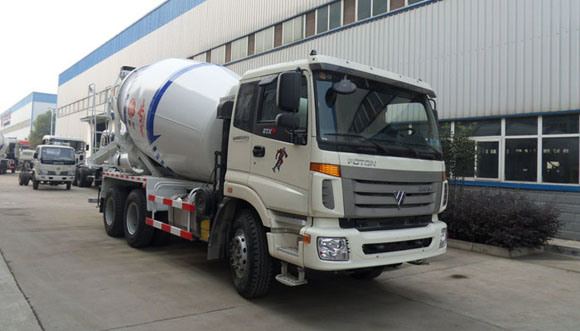

Futian Ouman Concrete Mixer Truck

Parameter Declaration

Item				unit			parameter
Vehicle model							HLQ5253GJB Concrete Mixer Truck
Chassis model							BJ5253GMFJB-S3
Overall dimensions				mm			9020×2495×3950
	Fact cubage			m3			9.0
	Mass in working order			kg			14200
	Wheel base			mm			3825+1350
	F/R track base						2005/1865
	Approach/departure angle			°			21/18
Exhaust/hp				ml/kw			9726/247
Max speed				km/h			77
Tire specification				12.00-20,12.00R20, 11.00-20,11.00R20			Engine type			WP10.336
Traction system				6×4			Transmission			9-speed
Number of axles				3			Electric system			24v
Operation control system				Power Steering			Allowable passengers in cab			3
Equipment		Mixing Drum	Geometric volume						14.9m3
			Mixing volume						9m3
			Filling ratio						0.63%
			Speed of In						1.2M³/min
			Speed of Out						0.8M³/min
			Tilt angle						13°
		Hydraulic System	Oil pump		Type				America Eaton ACA 5423
					Max working pssure ×Exhaust				415BAR/89.13cc/r
			Motor		Type				America Eaton HHD 5433
					Max working pssure ×Exhaust				415BAR/89.13cc/r
			Reducer		Type				Bonfiglioli 577
					Deceleration ratio				100:1
			Radiator		Type-Fuel tank capacity				Jiangsu Changzhou-18L
		Water supply system	Water forms						Pressure water tank
			Water tank capacity						350L
Engine				Weichai Diesel Engine (Europe 2)
Production cycle				20-25days
Warranty				12 month, from the date of supply
Factory price				$		FOB/DAF/CNF/CIF		$

Wuhan Yueruixiang Technology Co., Ltd is a professional supplier of construction machinery and agriculture machinery, We are located in Wuhan City, Hubei province, China.

Our main products includes Construction machinery: Wheel loader, skid steer loader, Forklift, road roller, bulldozer, motor grader, excavator, plate compactor, rammer, concrete cutter, ect,

And Agriculture machinery: Tractors and farming implements(backhoe, front end loader, wood chipper, rotary riller, lawn mower, plough, disc harrow, planter, ect) which wins the high approval in European, South and North America, Africa, Middle East and Asia due to our high quality and exceptional after-sale service. The reliable quality source from the strict quality control system.

At psent, some of products have passsed CE certification and ISO9001 quality system and in recent years the company has introduced advanced sequence equipment and technology from America, Germany, which assure the level of technique and measure of detect of the company to reach the international advanced level and form the benigh cycle innovation system of researching, producting, sale and developing.

Welcome to contact with us at any time.
