Detailed Description

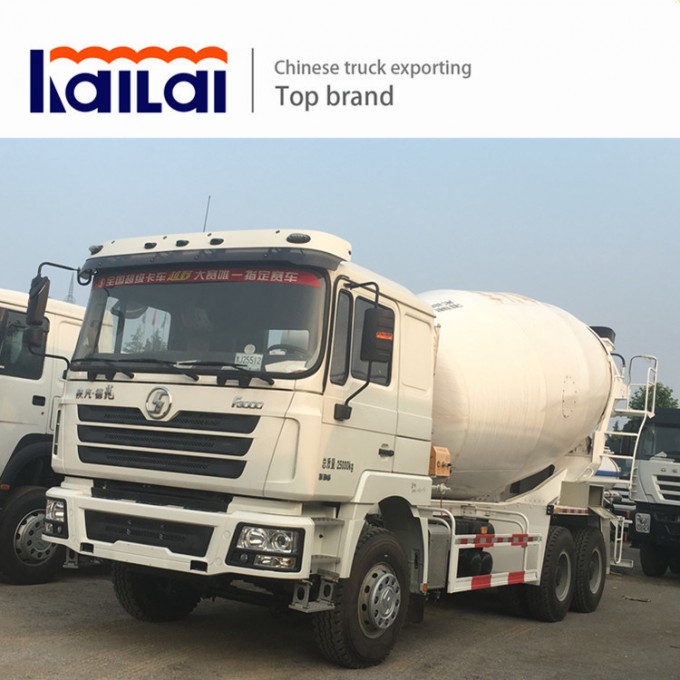

9 Cbm Shacman F3000 6x4 Co
ncrete Mixer Truck for Sale
Chassis: Shanxi automobile
Cabin Features: MAN F3000 widened and lengthened flat-roof cabin
Engine brand: WEICHAI
Model: WD12.336 EURII
Type: Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement: 11.596L
Engine output: 336HP @2200 rpm
Max. Torque: 1350 NM @1300-1600rpm
Bore: 126mm x 155mm
Specific fuel consumption: 195g/kwh
Name | Unit | SQ10 |
| Mixing Drum | Mixing cubage | m3 | 9 |
| Stirring vat geometric cubage | m3 | 17.9 |
| The largest diameter | mm | 2400 |
| Mixing barrel length | mm | 5474 |
| Stirring vat leaning angle | ° | 12 |
| The rotation speed | r/min | 0-14 |
| Concrete slump | mm | 40-210 |
| Hydraulic system | Oil pump | Brand | | Rexroth/Eaton/Sauer |
| Max.pssure*displacement | Mpa*ml/rev | 42*90 |
| Motor | Brand | | Rexroth/Eaton/Sauer |
| Max.pssure*displacement | Mpa*ml/rev | 42*80 |
| Gear reducer | Brand | | Bonfiglioli/PMP/Sauer |
| Max. torque/Speed ratio | N.m/i | 65000/120.3 |
| Oil cooler | Brand | | Jinli/Lida |
| Volume | L | 18 |
| Water supply system | Type | | Compssed air supply type |
| Volume | L | 450 |
| Vehicle parameters | Length*Width*Height | mm | 9650*2500*3980 |
| Total weight | kg | 24900 |
| Curb weight | kg | 12900 |
| Axle load | kg | 7000/17900 |
| Wheel base | mm | 3850+1300 |
| Tire model | | 11.00-20 16PR,11.00R20 16PR |
| Chassis parameters | Model | | |
| Steel plate spring number | | 9,10 |
| Steering gear type | | steering wheel |
| Manufacturer | | Shacman |
| Engine | Model | | |
| Type | | Water cooling 6-cylinder direct injection diesel engine |
| Displacement | ml | 8900 |
| Power | kw | 250 |
| Transmission | Manufacturer | | SHAANXI FAST |
| Model | | 9JS135B |
| Forward gear number | | 9 |
