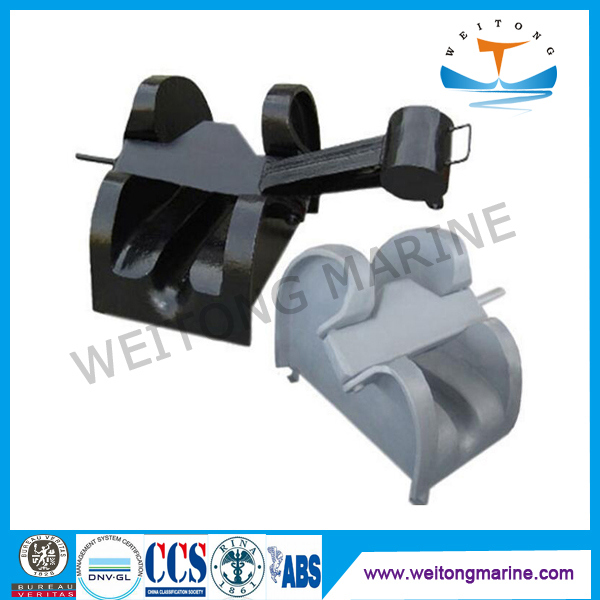

Marine Cast Steel Chain Stopper Bar Type

Marine Cast Steel Chain Stopper Bar Type
Bar Type Chain Stopper is used to clamp the anchor chain when the vessel mooring, chain stopper transport the pull strength of anchor and chain to vessel, can withstand the pull of anchor chain so as to protect the anchor windlass not in pull state. Chain Stopper is installed on the deck between windlass and hawsepipe.
Process:casting,forging, welding
Finish: anti-rust paint
Withstand 80% of Chain Cable's breaking load
Certificate:ABS, BV, GL, DNV, CCS,mill certificate etc.
Specification

Chain Dia.(mm)	Dimensions(mm)
	B	H	H2	L	h	B2	Weight(KG)
38-40	336	378	130	540	68	65	110
42-44	366	412	142	590	75	72	138
46-48	397	450	155	640	82	78	177
50-52	428	491	170	695	88	85	214
54-56	457	528	182	745	95	92	261
58-60	488	465	195	795	102	98	319
62-64	517	600	208	850	109	104	396
66-68	547	635	220	900	116	110	428
70-73	582	675	233	960	125	117	609
76-78	617	715	245	1020	133	123	740
Size 62mm to 78mm counter-weight shall be equipped.
The bar can be opened in right or left hand side.

Quality Assurance and Service
1. Have acomplete rigorous management, production and inspection processes to control the quality and avoid detail mistake
2. Design and produce ability
3. Rigorous inspection including incoming inspection, flaw detection etc., and double check is amust.
4. Advanced factory facility ensure
5. Response to any inquiry within 24 HRS with design or efficient solution from our engineer or tech supporter.
6. Provide professional customization service according to client's requirements
7. on time delivery, as we have rigorous production schedule and profession follow-up process
8. Moderate price and professional service
