Detailed Description
Introduction ofMining Locomotive JMY600 Diesel Hydraulic Rail LocomotiveThe diesel engine of Mining Locomotive JMY600 Diesel Hydraulic Rail Locomotive shall at least be compliant with EU-RL, Directive 2004/26/EC, Stage III orUS EPA Tier 3 requirements for "off road" diesel engines.
The co
ncentration of toxicemissions in the neat exhaust of the diesel engine must not exceed the specified limits asstipulated in the above requirements.Parameters ofMining Locomotive JMY600 Diesel Hydraulic Rail Locomotive
| Overall dimension (LxWxH) | 10,900 x 2,700 x 3,680 mm. |
| Power | 551.5 KW |
| Construction Speed | 64 Km/h |
| Maximum speed in CM | 50 Km/h |
| Locomotive service weight | 56+/- 3% Ton |
| Axle load | 14+2%Ton |
| Wheel Diameter | Dia. 850 +/- 5mm |
| Track gauge distance | 1435mm |
| Minimum passing curve | 80mm @ max. speed of 10 km/h. |
| Coupler type | Scharfenberg 35 |
| Coupler height | 770 +/- 5mm |
| Brake type | JZ-7 Air Brake System. |

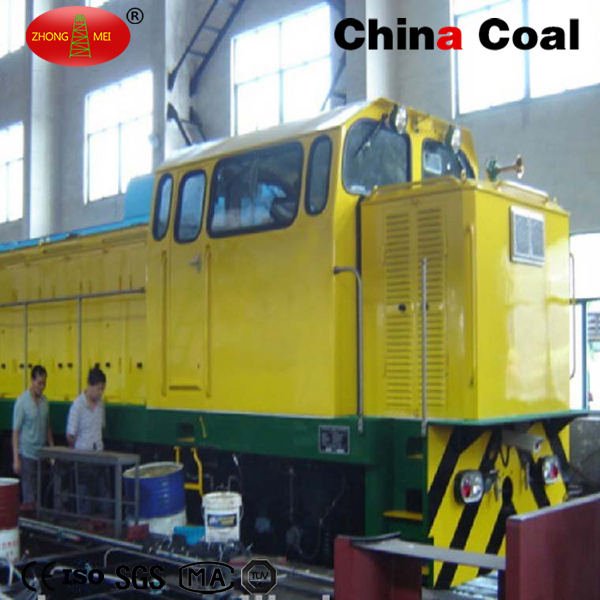

Photos Of Mining Locomotive JMY600 Diesel Hydraulic Rail Locomotive
