8ton Underground Mining Anti-Explosive Battery Powered Electric Locomotive

Introduction Of 8ton Underground Mining Anti-Explosive Battery Powered Electric Locomotive
CTY5/600mm Explosion-Proof Electric Locomotives battery Locomotive for Underground Mining is the company

developedsecond generation of the chopper speed controller electric locomotive(SM 202 smart electric locomotives).

Haveused the most advanced IGBT chopper controller, adding the driver cab's space without adding car body's

length, reformed the power box's lifting device, the locomotive has the characteristics of advancing circuits, simple

control, novel structure, simple operation, comfortable and high reliability, low maintenance cost, energy saving etcParameter Of8ton Underground Mining Anti-Explosive Battery Powered Electric Locomotive

Model		CTY8/6,7,9G
Adhesive Weight		8 tons
Track Gauge		600, 762 or 900mm
Traction		11.18Kn/h		12.83kN/h
Speed		6.2km/h		7.8 km/h
Max. Traction		19.62kN
Power Supply Device	Voltage	110V	132V	140V	144V
	Capacity	440Ah
Power		11kW*2		15kW*2
Size	Length	4470mm-4490mm
	Width	1062, 1212 or 1350mm
	Height	1600mm		1600mm
	Traction Height	320 or 430mm
	Wheelbase	1100mm		1150mm
	Wheel Diameter	Φ680mm		Φ680mm	Φ600mm
Min. Turning Radius		7m
Electromechanical Controller		Resistance, IGBT or Frequency Control
Brake Mode		Mechanical

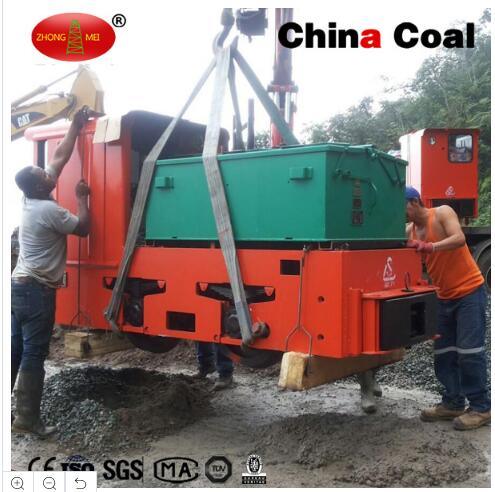

Photos Of8ton Underground Mining Anti-Explosive Battery Powered Electric Locomotive





Charger Of 8ton Underground Mining Anti-Explosive Battery Powered Electric Locomotive
