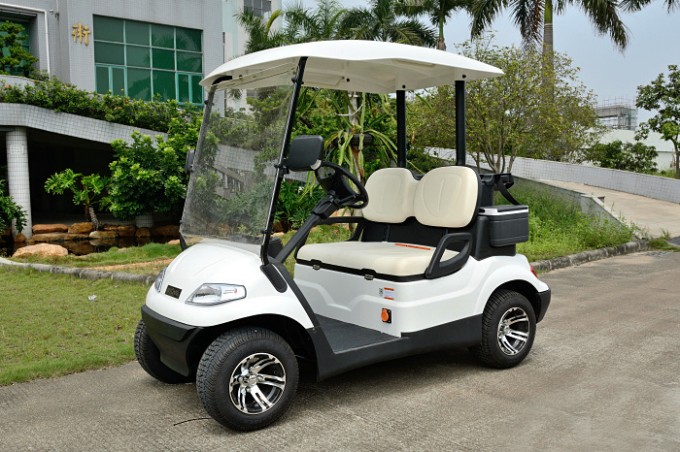

Electric 2 Seater Golf Cart

Product description
Electric 2Seater Golf Cart (LT-A627.2)

Features
1. Fashion shape design with simple appearance, elegant lines
2. US Curtis Controller
3. Trojan battery and maintenance free battery are available
4. Stable quality, little noise, anti-fatigue and long durability
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage.

System	48V 3.7KW DC system
Key Components
Battery	Lvtong GEL battery 8Vx6pcs
Motor	3.7KW DC motor(ADC)
Controller	Curtis 1266A-5201/275A
Tranaxle	transaxle with 12.31:1 gear ratio
Charger	Offboard charger 48V/20A
Performance
Passenger capacity	2
Range (loaded) based on flat road at aspeed of 20km/h	80-90 km
Max. speed @12.31:1 gear ratio	22-24km/h
Minimum turning radius (m)	2.9m
Max. climbing ability (loaded)	25%
Max. movement after brake	<6M
Cart's weight(w/batteries)	470kgs
Dimensions
Overall dimensions:LWH (mm)	2400*1200*1800mm
Min. ground clearance (mm)	100
Wheelbase (mm)	front 900mm/ rear1000mm

Company Information

1). Founded in 2004, with more than 13 years experience in Producing the golf cart
400 employees including more than 70 engineers;
2). There are more than 400 employees in our factory, including 20 salesand 20 engineers ,specialized services for overseas markets
3). Our products are shipped to more than 80 countries around the world
4). North America ,European, Australia and Asia are the main market.
5). 6years Made in China gold supplier
