Detailed Description
Electric vehicle product des
cription
1. Motor: US ADC brand
2. Controller: US CurTis1266
3. Battery: Trojan
4. Stable quality, little noise, anti-fatigue and long durability;
5. There is oil seal which can bear high temperature, therefore it can pvent the transaxle from oil leakage.
| Body& Chassis | |
| Body | PPAlloy automatic industrial special plastic |
| Chassis | Welded high yield strength tubular steel with liquid painting, spray booth painting, anode cells |
| Standard color | pink/sky blue/coffe/silver grey/champagne/apple green |
| Dimension | |
| Overal length | 3380mm |
| Overal width | 1200mm |
| Overal height | 1920mm |
| Ground clearance | 114mm |
| Wheel base(front/rear) | 870mm/980mm |
| Power | |
| Motor | 3.7kw A. D. C motor |
| Battery | 8 volt x 6 units, Trojan / US battery |
| Charger | Delta-Q onboard chargeror Offboard charger |
| Controller | American brand Curtis 1266 controller |
| Transaxle | Sunup transaxle |
| Performance | |
| Net weight (exclude batteries ) | 380kg |
| Loading capability | 600kg |
| Climbing Capability | Safety climbing capability20%Max climbing capability 30% |
| Maximum speed | 18-24 km/h |
| Braking distance | ≤ 2.5 m |
| Minimum turning radius | 3.9m |
| Max continuous mileage | 80km_ 100km |
| Steering& Suspension | |
| Steering | Dual automotive-style strut and self-adjust rack-and pinion steering |
| Front suspension | Helical spring with hydraulic shock absorber |
| Rear suspension | Helical spring with hydraulic shock absorber |
| Brakes | Dual rear wheel mechanical drum brakes, self-adjusting with non-asbsestos linings |
| Tyre | Carlisle 18x8.50-8/18x8.50-8 |
| Air pssure | 22PSI |

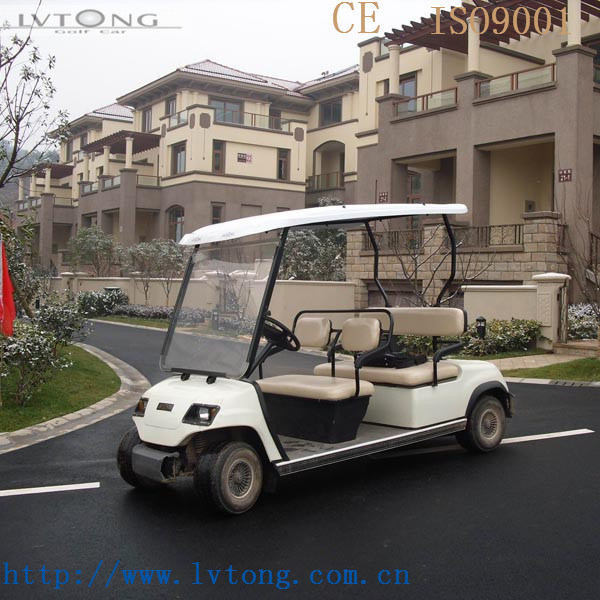

Product Image
