2 Seater Mini Electric Golf Carts with Ce

Model	EG2028K	EG2028K01	EG2028K02	EG2028K03	EG2028K05
System	36V/3KW Sepex	48V/3KW Sepex	48V/4KW Sepex	48V/4KW Sepex	48V/5.3KW Sepex
Key Components
Battery	6PCSxT105(185Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3KW ADC motor	3KW ADC motor	3.8KW Chinese motor	3.8KW Chinese motor	5.3KW Chinese Motor
Controller	Curtis 1243 (300A@2minutes)	Curtis 1266A (275A@2minutes	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)
Performance
Passenger capacity	2	2	2	2	2
Range (loaded) based on flat road at a speed of 20km/h (km)*	>55	>55	>55	>80	>80
Max. speed @12.76:1 gear ratio	21	25	32	32	32
Max. speed @10.26:1 gear ratio	25	40	40	40	--
Minimum turning radius (m)	3.5	3.5	3.5	3.5	3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio	20%	25%	25%	25%	25%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	15%	20%	20%	20%	--
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m	≤4m
Max. loading weight	150kgs	150kgs	150kgs	150kgs	150kgs
Net weight	470kgs	480kgs	480kgs	530kgs	530kgs
Dimensions
Overall dimensions (mm)	2350x1180X1800
Min. ground clearance (mm)	120
Wheelbase (mm)	1700
Front wheel tread (mm)	855
Rear wheel tread (mm)	975

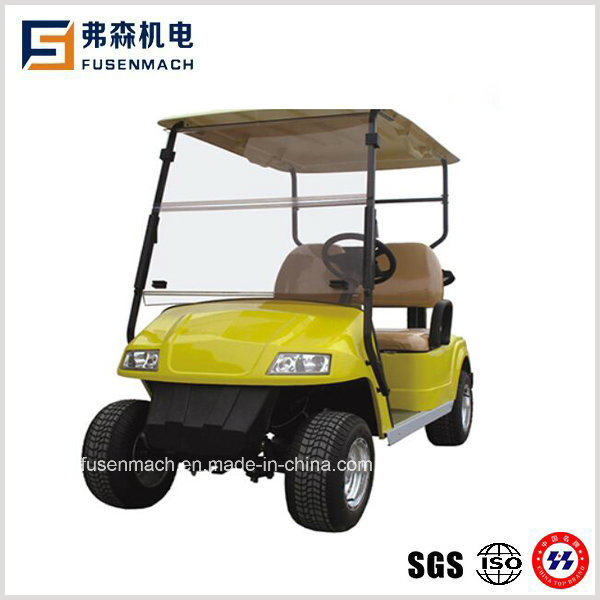

Electric Golf cart model EG2028K has asmooth shape, excellent performance characteriestics, fashionable design features, and can be used in golf course, vacation villages, private retirement residential areas, resort hotels, tourist spots, or any other place where the safe and intended use is allowed under local and state laws.

The main feature of EG2028K is as follows:
1.imported Curtis Controller
2.imported Trojan Battery
3.Welded steel frame with phsophating, e-coating and powder coating treatment, very strong anti-rust ability
4.PP plastic body, very nice finish
5.12V light system
6.onboard HF charger
