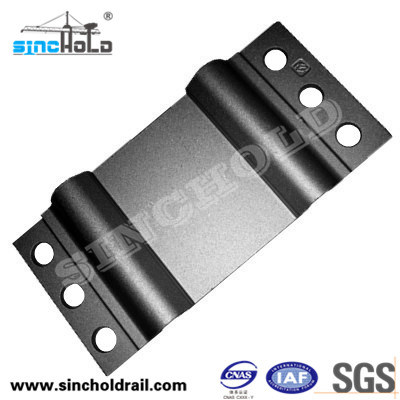

Tp09 Tie Plates for Railway Fastening System

Product Introduction
Rail tie plates are the uppermost component of a crane rail or track support system. The primary function of a tie plate or sole plate is to provide the rail with a flat, smooth resting surface while allowing for vertical alignment of the rail system. Tie plates are secured by Anchor Bolts, also known as Holding Down Bolts. Sole plates are typically installed with a layer of grout cast beneath, which fills the void between the sole plate and the concrete foundation.

The holes for bolting the anchor and leveling bolts, and holes for bolt through clips if psent, are pcisely drilled into the sole plates. For weldable clips and base clips, the bottom of the clip is welded onto the sole plates before galvanizing.

Product Details
