Technical Specifications of the 5040GJY3 Water Tank Truck
Do
ngfeng 153 compssion garbage truckParameter Declaration >>
| Dongfeng 153 compssion garbage truckTechnical Parameters |
| Product: | Dongfeng 153 compssion garbage truck | Overall dimension: | 8605,8105×2495×3350(mm) |
| Chassis model: | EQ1141KJ | Compartment dimension: | ××(mm) |
| Gross weight: | 13895(kg) | Approach angle/Departure angle: | 25/11,25/14(°) |
| Rated payload: | 5000(kg) | Front/rear suspension: | 1205/2900,1205/2400(mm) |
| Kerb weight: | 8700(kg) | Max speed: | 90(km/h) |
| Engine: | ISBE185 30 ISDe180 30 ISDe185 30 ISDe210 30 B190 30 |
| Displacement: | 5900 4500 6700 6700 5900(ml) | Power: | 136 132 136 155 140(kw) |
| Manufacturer: | Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd./Dongfeng Cummins Engine Co., Ltd. |
| Emission standard: | GB3847-2005,GB17691-2005 Euro 3 |
| Axle nos: | 2 | Front tread: | 1940(mm) |
| Wheelbase: | 4500(mm) | Rear tread: | 1860(mm) |
| Tyre nos: | 6 | Tyre specification: | 10.00-20,10.00R20 |
| Fuel type: | Diesel | Leaf spring nos: | 8/10+8 |
| Axle load: | 4195/9700 | Passenger nos | 3 |
| Remarks: | Optional to fix with rear overturn device. |
| More pictures: | |
| Please contact us if you want more product information, we are ready to provide service for you! |

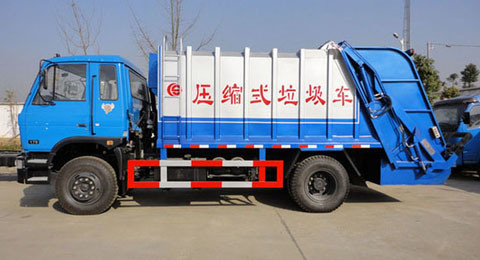

Product Image
