Detailed Description
HOWO Refuse Compactor / Garbage Truck
Specifications
1. Fashion design
2. New technology and stable performance
3. Competitive Price
4. Howo garbage truck
| Model Number | QDZ5251ZYSA |
| Chassis Number | ZZ3257M3847C |
| Driving type | 6*4 |
| Specified Weight(kg) | 17830 |
| Kerb Weight(kg) | 14670 |
| Total Mass(kg) | 32500 |
| Overall dimesion(L*W*H)mm | 9695*2500*3290 |
| Min. Turning Radius (m) | 10.2 |
| Max. Speed (Km/h) | 75 |
| Fuel Consumption(L/100km) | 27 |
| Engine | SINOTRUK Brand |
| Horse Power(hp/r/min) | 290/2200(EURO III) |
| Volume of the Body(m3) | 20 |
| Volume of the Filler(m3) | 2.5 |
| Height of Filler Entrance(mm) | 1050 |
| Time of one Loading Cycle(s) | <25 |
| Time of one Unloading Cycle(s) | <60 |
| Max Brake Crase Pressure(kgf) | >25000 |
| Pressure of Fluid System(Mpa) | 20 |
| Front/Rear Drain Tank Capacity (L) | 200/150 |
| Transmission | ZF9, Synchromesh, 9 forward and one reverse |
| Clutch | Dia.420mm, Hydraulically operating with air assitance |
| Front Axle | Steering with double T-cross section beam Capacity: 6500 kg |
| Rear Axle | Central single reduction with planetary wheel reduction and differntial locks between wheels and axles Capacity: 2*13,000kg |
| Steering | ZF8098 |
| Brake | Dual circuit compssed air service bake, spring energy parking brake, engine exhaust auxiliary brake, ABS for option |
| Tyre | 12.00R20 |

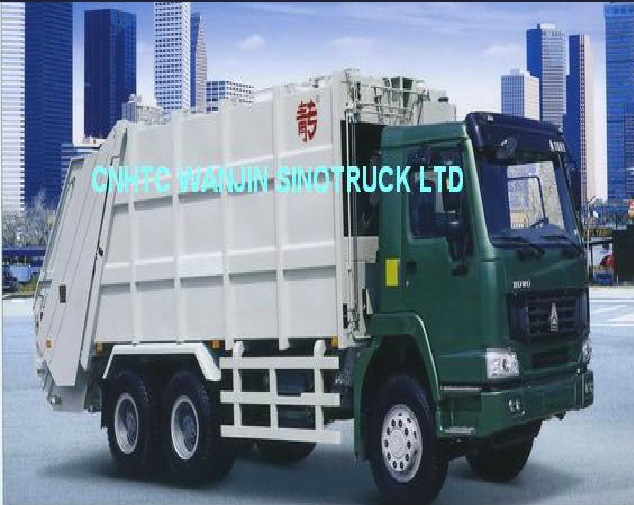

Product Image
