Detailed Description
China 6 meter long 14 seats-24 seats bus (school bus)
I---Main Performance Parameter
Bus size:5995x2240
x2790 mm
Wheelba
se:3308 mm
Seats: 14 seats to 24 seats.
II---Detailed Information
| Item | SLG6600C3F, RHD |
| Dimension | LXWXH (mm) | 5995x2240x2790 |
| Tread F/R (mm) | 1830/1600 |
| Wheelbase (mm) | 3308 |
| Weight | Total Mass (Kg) | 5700 |
| Performance | Min. Vehicle Turning Circle (m) | 11 |
| Max. Speed (Km/h) | 100 |
| Angle (App/Dep) | 13/10 |
| Seat Capacity | 24 seats |
| framework | Straight Beam |
| Engine | Model | YC4F115-20 |
| Type | 4 Cylinder In-Line |
| Rated-Power (kw/r/min) | 85KW |
| Max. Torque (N.M) | 300 |
| Emission Standard | Euro 2 |
| Fuel Type | Diesel |
| Clutch | Type | Single Plate Dry Cluch |
| Clutch Boost | With Pump |
| Transmission | Model | DF5S300 |
| Max. Torque | 300 |
| Shifts | 5 speed manual |
| Front Axle | 2.3T |
| Rear Axle | 5T |
| Braking System | Steering | Power steering |
| Service Brake | Diaphragm spring brake |
| Brake drum diameter | Ф310 |
| Brake-shoe width | 130/130 |
| Suspension Style | Multiple-Leaf Spring |
| Tyre | 7.00-16 (one spare tire) |
| Oil Tank Capacity | 90L |
III---Standard Configuration
| Items | Name | Specification |
| 1 | Curtain | Fixed, laminated glass, |
| 2 | Sun visor | Driver's roller sun visor |
| 3 | Instrument board | Omnisea |
| 4 | Inner decoration | Plastics |
| 5 | Rearview mirror | Manual integrated side mirror |
| 6 | Inside mirror | Standard |
| 7 | Passenger door | Manual folding passenger door |
| 8 | Side window | Sliding window with a fixed top, channel; |
| 9 | Passenger seat | Single seat width 420 two-seater 840 ordinary seats |
| 10 | Inner handrail | F/R Inner top handrail |
| 11 | Clearstory | Escape hatch |
| 12 | Steering wheel | Adjustable steering wheel |
| 13 | Security | Fire Extinguisher |
IV---Optio
nal configuration
| Items | Name | Specification |
| 1 | Air conditioner | Optional |
| 2 | 7.00R20 radial tyres | Optional |
| 3 | Emission standard (Euro 3) | Optional |
| 4 | LCD TV | Optional |
| 5 | Rear camera | Optional |
| 6 | School bus | Optional |
| 7 | Baggageholder on top of bus | Optional |
| 8 | Heater | Optional |
| 9 | Right hand drive | Optional |

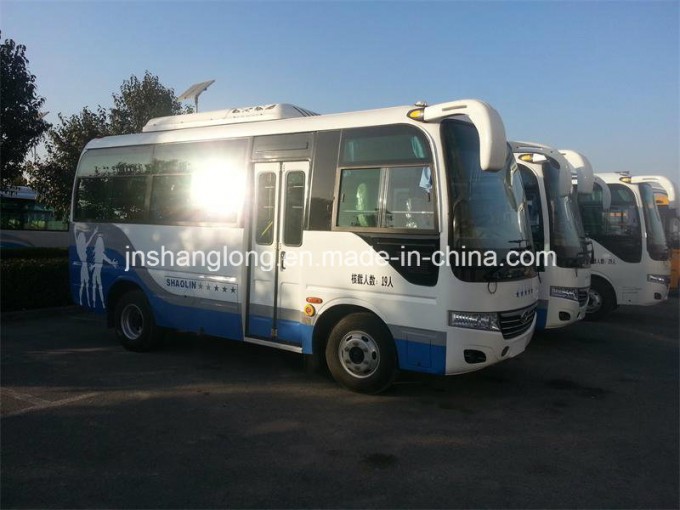

V---Pictures for reference
Product Image
