Detailed Description
7.2 meters Long 35 seats or 38 seats School Bus (3-15 years old)
I---Main Performance Parameter
Type: School bus
Student year: 3-15 years old
Setas: 38 seats
Size:7200*2245*3000 mm
Tyres:7.50-16 (7.50R16 is optional)
II---Detailed information
| 38 seats diesel school bus without A/C--LHD |
| Item | SLG6720C3GE, LHD |
| Dimension | LXWXH (Mm) | 7200*2245*3000 |
| Tread F (MM) | 1830 |
| Tread R (MM) | 1600 |
| Wheelbase (Mm) | 3300 |
| Weight | Total Mass (Kg) | 7500 |
| Performance | Min. Vehicle Turning Circle (M) | 11 |
| Max. Speed (Km/H) | 95 |
| Angle (App/Dep) | 13/10 |
| Seat Capacity | 38 seats (including driver) |
| framework | Straight Beam |
| Engine | Model | YC4F115-20 |
| Type | 4 Cylinder In-Line |
| Rated-Power (kw/r/min) | 85KW |
| Max. Torque (N.M) | 300 |
| Emission Standard | Euro 2 |
| Fuel Type | Diesel |
| Clutch | Type | Single Plate Dry Cluch |
| Clutch Boost | With Pump |
| Transmission | Model | DF5S300 |
| Max. Torque | 300 |
| Shifts | 5 speed manual |
| Control Systems | flexible shaft |
| Front Axle | 2.7T |
| Rear Axle | 5T |
| Braking System | Steering | Power Steering |
| Service Brake | Dual-Circuit Air Braking System |
| Parking Brake | Diaphragm Spring Brake |
| F/R Braking Dia. | Ф310 |
| F/R Braking Shoe Width | 120/150 |
| Suspension Style | Multiple-Leaf Spring |
| Tyre | 7.50-16 (7.50R16 is optional) |
| Oil Tank Capacity | 90L |
| Items | Name | Specification |
| 1 | Front Glass | High Speed Safe Glass |
| 2 | Instrument Panel | Multifunctional Luxury Panel |
| 3 | Inner Decoration | Capacious And Bright Interior |
| 4 | Rearview Mirror | Luxury Rabbit Ear Rear View Mirrior |
| 5 | Inside Mirror | Yes |
| 6 | Passenger Door | Folding Passenger Door Passenger Door Before The Front Axle (controlled by driver) |
| 7 | Side Window | Sliding Window |
| 8 | Passenger Seat | Soft Seats |
| 9 | Sunroof | Adjustable Sunroof |
| 10 | Steering Wheel | Adjustable Steering Wheel |
| 11 | Floor Board | Durable Anti-Skid Floor |
| 12 | Luggage Compartment | Side Spacious Compartment |
| 13 | Audio Entertainment | MP3 USB Radio |
| 14 | Front Defrost | Powerful Defroster |
| 15 | Seat Belt | With |

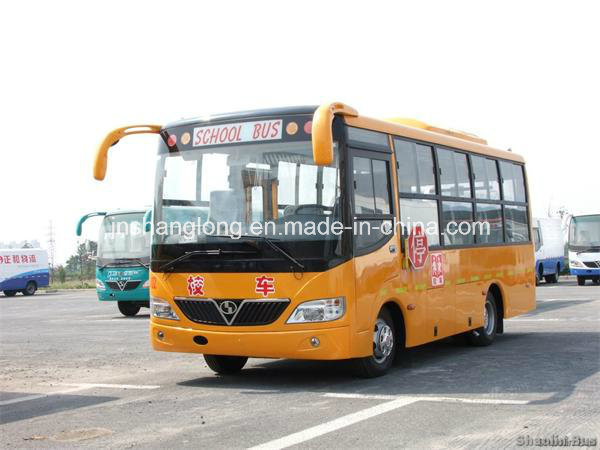

III---Pictures for reference
Product Image
