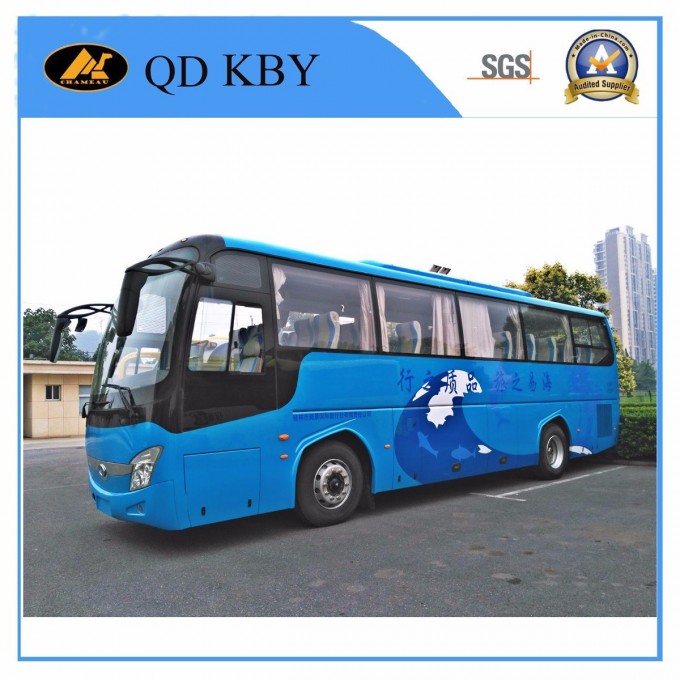

12m Length 55 Seats Passenger Tourist Luxury Coach/Bus

()ITEM
()DIMENSION	()LENGTH×()WIDTH×()HEIGHT(MM)	12000x2550X3800
	()Tread F (MM)	2060
	()Tread R (MM)	1860
	()WHEELbase (MM)	6000
()WEIGHT	()TOTAL MASS (KG)	18000
()PERFORMANCE	()MIN. VEHICLE TURNING CIRCLE (M)	19650
	()MAX. SPEED (KM/H)	110
	(/)ANGLE (APP/DEP)	13/10
()SEAT CAPACITY		55seats 2+2 Layout
()frameWORK		()STRAIGHT BEAM
()ENGINE	()MODEL	CUMMINS ENGINE ISDE245-30
	()TYPE	(6)6CYLINDER IN-LINE
	()RATED-POWER (KW/R/MIN)	280KW
	()MAX. TORQUE (N.M)	1230
	()EMISSION STANDARD	(3)EURO III
	()FUEL TYPE	()DIESEL
()CLUTCH	()TYPE	()SINGLE PLATE DRY CLUCH
	()CLUTCH BOOST	WITH PUMP
()TRANSMISSION	()MODEL	ZF TECHNOLOGY QIJIANG GEAR BOX 6 SPEED MANUAL
	()MAX. TORQUE	1590
	SHIFTS	()6 SPEED MANUAL
	()ConTROL SYSTEMS	FLEXIBLE SHAFT
()FRONT AXLE		6.5T
()REAR AXLE		13.0T
()BRAKING SYSTEM	()STEERING	()POWER STEERING
	()SERVICE BRAKE	()DUAL-CIRCUIT AIR BRAKING SYSTEM ABS
	()PARKING BRAKE	Diaphragm spring brake
	()F/R BRAKING DIA.	Ф400
	()F/R BRAKING SHOE Width	130/155
()SUSPENSION STYLE		()LEAF SPRING SUSPENSION
()TYRE		295/80R22.5
()OIL TANK CAPACITY		300L

Company Introduction

We are one ofthe major bus manufacturers in China which is certified by Chinese Ministry of Industry and Information Technology(MIIT).

Established in 1983, with 3 decades of development, it is now a powerful enterprise with 3,000 employees and 4 assembly factories. We are capable of producing 20,000 buses every year.

We produce different types of coaches, buses, city buses, cargo van, school buses and bus chassis. The products we export have gained the certification of CCC and ISO9001. We have customers from all over the world.

Adhere to the value of"CUSTOMERS BEING SUPREME, SERVICE BEING ENDLESS", we will spare no efforts to dedicate ourselves to meet the satisfaction and benefit of our customers. The best quality products and the strongest are always guaranteed to all of our clients and business partners.
